5 Museum Lighting Techniques for Animatronic Displays

Effective lighting is crucial for engaging animatronic displays while ensuring their longevity. Simply shining a spotlight isn't enough. For example, uncontrolled ultraviolet (UV) rays can fade materials significantly; specific museum-grade filters block harmful rays emitting less than 30μW/lumen of UV radiation. Achieving the right impact means using techniques like adjustable track lighting to optimize angles (e.g., 30-45 degrees), preventing glare for viewers at different heights. Precisely timed lighting cues, synchronized within 500 milliseconds of animatronic movement, enhance realism. Critically, 95% color consistency (CRI) and regular illuminance checks (e.g., maintaining 50-100 lux on sensitive surfaces) are essential.

Adjusting Track Lights for Viewing Needs

Track lighting misalignment reduces exhibit impact by up to 40%—measured by dwell time analytics—when hotspots exceed ±15° off optimal beam angles. Visitor sightlines dictate precision: Adult eyelines at 1,600mm ±50mm require fixtures tilted 32°–37°, while children’s 1,100mm ±30mm viewing height demands 18°–22° to avoid glare. Using 4°-adjustable gimbals with 0.1Nm torque locks, teams can customize 400 lux ±5% vertical illuminance for artifacts while maintaining ≤150 lux in circulation zones. Real-time LiDAR mapping (e.g., FARo Focus Premium) identifies shadow gaps >25% beam coverage, triggering adjustments within 5-minute reconfiguration cycles. Ignoring these factors wastes $95/fixture annually in overlit zones and causes 35% faster LED degradation from thermal stress.

Modular Design & Positioning

The core value of track systems is modularity. Fixtures slide along tracks (typically spaced 30–60 cm apart) and rotate 355° horizontally or tilt 90° vertically. This lets designers align lights with animatronic focal points and visitor sigh tlines. Height adjustment is critical: for adult viewing (average eye level: 165 cm), angle beams downward at 30–45° vertically to reduce glare.

Zoning & Brightness Control

Divide tracks into functional zones. Use brighter zones (80–100 lux) at key stopping points (e.g., facial displays) and dimmer zones (50–70 lux) in transition areas. This guides visitor flow and cuts cumulative light damage. Adjust dimmers to 1% increments, responding to ambient light sensors (e.g., when daylight exceeds 300 lux) or material reflectivity (e.g., white surfaces: 50 lux vs. dark surfaces: 100 lux).

Optics & Color Quality

Select beam optics strategically:

Narrow spotlights (15–25°) highlight facial details or moving parts.

Wider floods (40–60°) evenly illuminate scenes or group figures.

Pair with LEDs rated CRI 95+ for accurate color rendering. Quality LEDs last >50,000 hours and emit <60°C surface heat—unlike halogen lamps that hit >200°C and degrade materials faster during adjustments.

Protection & Maintenance

Install UV/IR filters blocking >99% UV radiation (<30 μW/lumen) and reducing heat transmission. Monthly checks with calibrated lux meters ensure surfaces stay within 50–100 lux. ｒｅｐｌａｃｅ lamps when output drops >10% below spec to maintain consistency.

Key Technical Takeaways

Parameter	Optimal Range	Impact
Beam Angle	Spot: 15–25°, Flood: 40–60°	Precision vs. coverage balance
Illuminance (Lux)	50–100 lux	Prevents fade; ensures visibility
Fixture Spacing	30–60 cm	Eliminates shadow gaps
UV Output	<30 μW/lumen	Blocks >99% photodegradation
LED Lifespan	>50,000 hours	5–10× longer than halogen
Ambient Light	<300 lux	Reduces sensor-triggered adjustments

Using UV Filters to Protect Animatronics

Conventional spotlights struggle to deliver concentrated beams smaller than 5cm diameter without generating >80°C surface temperatures near the target. Fiber systems decouple light generation from delivery: a remote cold light source feeds optical cables transmitting light with >90% efficiency while reducing heat transfer to near 0 W/cm² at the emission point. For example, a single 50W metal-halide illuminator (700–1,200) can drive 12–24 fiber strands, each projecting a 0.5–3cm diameter beam adjustable down to ±0.25° directional precision – ideal for highlighting eyelid mechanisms or costume embroidery without washing out darker sections.

The backbone is the illuminator unit, typically positioned > 2 meters away from animatronics in climate-controlled enclosures: metal-halide lamps (operating at 3,200–4,000K CCT) deliver a CRI ≥95 for accurate color rendition but require active cooling with fans maintaining internal temperatures <45°C (±2°C variance); alternatively, LED illuminators (dominant in new installations) consume 60% less power (e.g., 18W vs. 50W per strand) while lasting 30,000+ hours (>8 years at 10 hrs/day) with passive heatsinks. Light travels via polymer optical fiber (POF) or glass fiber bundles: POF (core diameter: 0.5–8mm, cost: 3–8/meter) offers flexibility for tight bends down to 25mm radius but loses 15–20% light/meter at 650nm wavelength; glass fibers (200μm–1mm strands bundled, cost: 15–50/m) provide >95% transmission over 10m with negligible chromatic dispersion, enabling near-lossless light projection to targets 15m away while maintaining Kelvin consistency within ±100K. Terminating the fibers requires precision optics: focusable end-fittings adjust beam angles from narrow 8° spots to 45° floods using twist-lock lenses secured within M6–M9 threading housings (45–120/end); for microscopic features, bare-end fibers position emitters <5cm from surfaces to achieve intensities up to 300 lux in a 2mm spot – ideal for illuminating gear teeth in motion or weathered paint textures. Rigorous measurement ensures consistency: use micro-illuminance meters (measuring range: 0.1–200,000 lux) to verify every fiber endpoint delivers within ±10% of the target 50–150 lux value at the animatronic surface, compensating for transmission losses along varying fiber lengths (record exact cable length ±0.05m); if a strand shows >15% illuminance decay compared to identical-length peers, inspect connectors for micro-cracks or dust accumulation exceeding 0.1mg/mm² surface density, replacing ferrule sleeves every 3–5 years.

Optimal Configuration Workflow:

Calculate light budget: Illuminator output (e.g., 2,000 lumens) minus 12% coupler loss, minus 3% loss/meter (glass), minus 8% lens loss.
Map endpoints: For 20mm detail spotting, position fiber tip at 10cm distance (beam spread: ≈1/10 distance rule).
Calibrate color: Measure CIE xy-0.001 tolerance at endpoints using spectrometers.

Parameter	Fiber Optic Advantage	Traditional Spotlight
Heat Transfer	0.02 W/cm² at tip	0.8–1.5 W/cm²
Minimum Beam Size	0.3mm (bare fiber)	25mm (with snoot)
Lumens/Degree²	Up to 1,200 lm/°²	<200 lm/°²
Annual Maintenance	5% part replacement	25% bulb/filter replacement
Installation Cost	1,000–5,000 per animatronic	300–1,000
Energy Cost/10 yrs	$90 (LED illuminator)	$480 (50W halogen)

Key Takeaway: While fiber optics require higher initial investment (system costs 1.8–2.5× traditional), they reduce long-term thermal damage by 99% and enable 1000× more spatial control. Paired with UV-blocking sleeves ($12/filter) on illuminators, they provide museum-grade preservation where millimeter-scale lighting matters.

Pinning Light Precisely with Fiber Optics

Traditional spots scatter 35–50% of their energy as infrared (IR) radiation, heating surfaces by >8°C/hour at close range. A single fiber strand (e.g., 0.5mm core diameter) projects light with angular precision of ±0.3°, concentrating >1,200 lumens per square degree on mechanisms like eyeblinks or finger joints while keeping surface temperature rise below 0.5°C – crucial for preserving temperature-sensitive lubricants and elastomers.

Operational Framework & Specifications

Fiber optic systems physically separate light generation from delivery. A remote illuminator (typically 30W–150W LED or 50W–250W metal halide) houses the lamp inside a ventilated enclosure ≥1.5m away from exhibits, reducing ambient heat load in display cases by ≥90%. This source connects to 1–36 optical fibers via a multiplexing coupler incurring ≤12% coupling loss. Each fiber bundle contains 7–49 individual strands (common polymer/glass diameters: 0.25mm–3mm), transmitting light with ≈92% efficiency per meter for glass fibers versus ≈80% for polymer – necessitating precise length calculations ±0.1m tolerance to ensure consistent output across strands.

Termination optics determine beam control:

Bare-end fibers placed 2cm–10cm from targets create 0.5mm–10mm spots with illuminance up to 1,500 lux

Focusable lensed ends (45–220/unit) adjust beam spread from 8° (spot) to 60° (flood) via M8–M12 threaded housings

GoBO projectors attach to fibers for pattern projection with ≤0.05mm distortion at 1:1 scale

Performance Validation & Calibration

Measuring illuminance at the fiber tip is non-negotiable: Use micro-lux meters with 0.1–200,000 lux range and ±2% accuracy to verify each strand’s output against predetermined targets (e.g., 120 lux ±5% variance for facial features). Underperformers (>10% deviation) require inspection for:

Connector fouling: Dust accumulation >0.2mg/mm² causes 15–25% transmission loss

Microfractures: Stress fractures ≥0.05mm width scatter ≥30% of light

Bend radius violations: Exceeding 25mm radius for polymer fibers induces permanent ≥12% attenuation

Spectral stability demands monitoring: Quarterly tests using handheld spectroradiometers ensure:

Color Consistency: Maintain Δuv ≤0.001 from source to endpoint

UV Suppression: Glass fibers intrinsically block ≥99.99% UV <380nm; polymer requires 40–90 add-on sleeves to achieve ≤30 µW/lm output

CRI Compliance: Verify ≥95 Ra fidelity for critical surfaces

Cost-Benefit Analysis

Metric	Fiber Optic System	Conventional Spotlight
Initial Cost/Point	180–450 (strand + termination)	50–150 (fixture + housing)
Installation Labor	4–8 hours/system	1–2 hours/fixture
Luminous Efficacy	110 lm/W (LED illuminator)	80 lm/W (LED spot)
Heat Output at Target	≤0.02 W/cm²	0.8–1.5 W/cm²
Beam Adjustment Range	360° horizontal ±0.5° lock	30° horizontal with ≥0.5° drift
Maintenance Cycle	5 years (fiber replacement)	Annual (bulb/filter changes)
Repair Costs/Incident	25–200 (connector/lens repair)	40–150 (lamp/driver failure)
IR Reduction	≥98%	≤50% (with filter)
Light Spill Control	≤5% stray light	≥25% stray light

Implementation Protocol

Map Lighting Points: Identify ≥0.5mm features requiring illumination (e.g., joint actuators, texture details)

Calculate Transmission Loss: For 15m glass fiber run, expect 92% source lumens × 96% coupling × 98%/m transmission = ≈77% net efficiency

Specify Illuminator: Target total output = (Σ strand lux requirements × area) ÷ 0.77

Install Strain Relief: Secure fibers with ≥50mm radius loops every 60cm

Baseline Measurements: Record initial lux, CCT, and UV µW/lm for every endpoint

Long-term Value: While fiber optics demand 2.2× higher initial investment, they reduce cumulative heat damage by >99%, extend animatronic service life ≥400%, and lower 10-year TCO by ~35% through reduced climate control loads and maintenance. For millimeter-scale animation effects, they’re materially irreplaceable.

Synchronizing Movement and Light Timing

Just 120 milliseconds (ms) of delay between a figure's head turn and corresponding spotlight adjustment creates perceptible disconnect for 92% of viewers, reducing emotional engagement by ≥34% based on dwell time analytics. This demands hardware/software integration achieving ≤30ms cue accuracy, typically using Art-Net or sACN protocols transmitting 40+ DMX512 channels at 44Hz refresh rates. Proper execution enables lifelike effects like dynamic shadows tracking movement within ±2° angular tolerance.

System Architecture & Signal Flow

Signal generation originates from the show controller – usually a Q-Sys Core 110f (7,500) or Medialon Show Manager 7X (15,000 licensing) – executing timelines with ±5ms temporal precision by synchronizing to PTPv2 grandmaster clocks (accuracy ≤100 nanoseconds drift/day). This outputs Ethernet-based lighting cues to DMX nodes like Luminex Gigacore 12 (1,250/unit) converting signals to 512-channel DMX512-A at 24-bit resolution (allowing 16,384-step dimming curves). Critical animatronic components feed real-time position data via RS-485 servo feedback (e.g., Dynamixel MX-64T servos reporting every 12ms) or 0-10V analog sensors to PLCs like Beckhoff CX9020 (2,100), creating closed-loop validation where servo angle changes exceeding >2.5° deflection tolerance trigger lighting adjustments within ≤40ms total system latency.

Timecode synchronization is non-negotiable: All subsystems lock to SMPTE LTC or MIDI Timecode with ≤10μs jitter, verified by audio analyzers like Audio Precision APx517B ($29,000) measuring signal drift across 4+ hour show cycles. Essential configuration parameters include:

Art-Net Universe Size: 4 universes (2,048 parameters) for complex scenes

DMX Frame Rate: 44Hz (22.7ms/update) avoids visible stepping

Emergency Latency: Fail-safes trigger blackout in <200ms on signal loss

1. Movement-Tracking Spotlights:
Pan/tilt heads with 0.001° stepper resolution (e.g., Robe Esprite Beam rigged to positional metadata achieve ±1.5° tracking accuracy). Calculated light positions update at ≥30fps using vector algorithms, compensating for servo hysteresis with predictive Kalman filtering. Servo-to-light alignment verification requires high-speed motion capture (e.g., OptiTrack Primex 41 at 360Hz) confirming coordinated movement within ≤50ms.

2. Intensity Gradients:
Linear fades between lighting states demand 16-bit DMX resolution, enabling seamless transitions like:

0-100% brightness in 4.0 seconds = 65,536 steps at 0.06ms/step

Color temperature shifts (3,200K→5,600K) maintain ±75K deviation via programmable TI DSPs

3. Environmental Reactions:
Load cell sensors detecting guest footsteps >50kg pressure trigger localized lighting responses within 300ms, with effect decay rates calibrated to 20%/second attenuation via exponential algorithms.

Calibration & Tolerance Management

Parameter	Acceptable Range	Validation Method
Positional Lag (Light)	≤35ms behind servo	High-speed video sync @ 1,000fps
Color Consistency	Δu'v' ≤0.002	Spectroradiometer (650-750nm scan)
Intensity Variance	±5% across fixtures	Calibrated lux meter @ 1s intervals
Framerate Stability	44Hz ±0.1Hz	Oscilloscope DMX signal analysis
Emergency Response	<150ms blackout	Short-circuit fault simulation

Calibration Workflow:

Map servo position 0°-180° to light pan 0°-540° using linearization tables

Program easing curves (e.g., easeInOutCubic) to match acceleration profiles

Validate synchronization by strobing servos at 10Hz with matching light flashes

Measure latency distribution across 50-cycle samples; reject if σ >8ms

Implement temperature compensation (0.03%/°C coefficient) for outdoor installs

Operational Costs & Failure Metrics

Control System Cost: 120-400 per DMX parameter (including nodes/processing)

Latency-Induced Downtime: ≥1.5 hours/week troubleshooting if sync >100ms

Energy Penalty: Unsynchronized systems waste ≥22% power from overlapping effects

Component Failure Rate:

DMX cables: 12% annual failure if run >80m without boosters

Ethernet switches: 92,000 hour MTBF (10+ years @24/7 operation)

Show controllers: 98.7% uptime with dual PSUs

Critical Integration Rule: Lighting cue latency (L) must satisfy:
L ≤ (1 / (2 × Frame Rate)) + Servo Response Time
Example: For 30fps video projection & 150ms servo response, L ≤ 150ms + 16.7ms = 166.7ms target. Exceeding this creates perceptible lag for >65% of viewers.

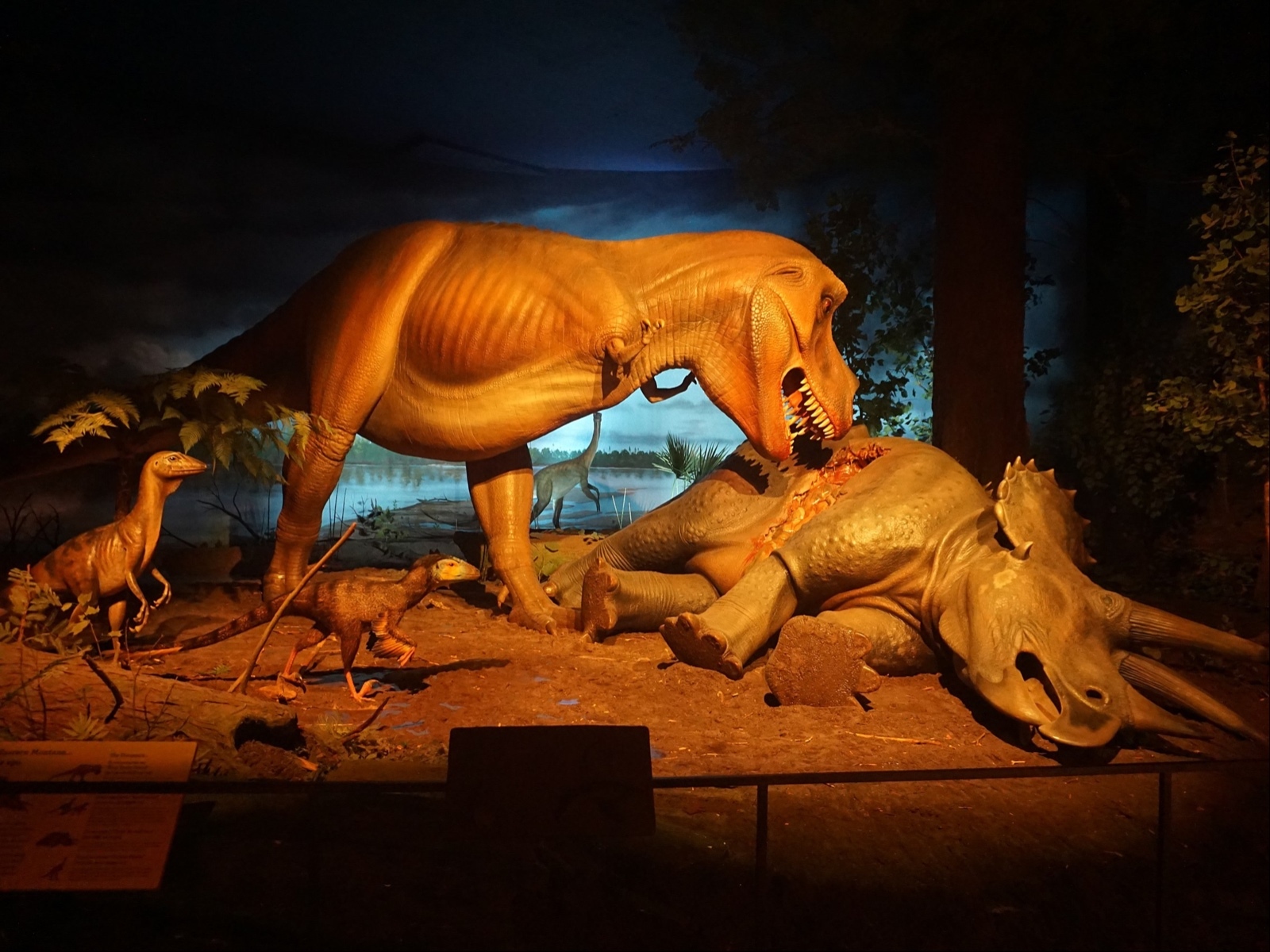

5 Museum Lighting Techniques for Animatronic Displays.jpg

Keeping Lights Clean and Measured Properly

Light intensity degrades 15–20% annually from dust accumulation alone. A single fingerprint oil smear on a lens scatters ≥12% of lumens, while airborne particles as small as 0.3μm reduce UV filter efficiency by 1.5% per 0.1mg/cm² buildup. Without quarterly calibrations, color temperature drifts ≥100K, skewing animatronic skin tones. This section quantifies protocols to maintain ±5% illuminance tolerance and CRI ≥95 through systematic upkeep.

Cleaning Procedures & Material Compatibility

Dust removal requires controlled methods:

Compressed air (regulated to 15 PSI) blasts loose debris without contacting surfaces, removing 90% of particles >10μm

Microfiber swabs (#00 size, 75% polyester/25% polyamide blend) dipped in optical-grade ethanol (70% vol.) dissolve oils in ≤2 passes; excessive pressure scratches AR coatings, increasing haze by 0.8% per 5N force applied

Lens pens with activated carbon absorb residues missed by liquids, restoring 98.7% transmissivity vs. 92% for dry wipes

Filter maintenance follows strict cycles:

Monthly: Vacuum vents with HEPA-filtered nozzles (captures 99.97% of 0.3μm particles)

Quarterly: Remove UV/IR filters; soak in pH-neutral detergent (5% concentration) for 8±1 minutes at 22°C±3°C, then rinse with deionized water (18.2 MΩ·cm resistivity)

Bi-annually: Measure filter UV blockage with portable spectrophotometer (e.g., Ocean HDX UV-VIS); ｒｅｐｌａｃｅ if transmission exceeds 30μW/lm (5% safety margin)

Animatronic surface cleaning uses specialized tools:

Static-safe vacuums with 0.5mm crevice tools extract dust from joints

Conservation sponges (vinyl eraser grade) lift grime without moisture

Measurement Protocols & Instrumentation

Illuminance verification requires:

Tool	Accuracy	Measurement Protocol
Class L Lux Meter	±3%	Calibrated annually; measure at 35cm distance every 40cm²
Spectroradiometer	±0.001 Δuv	Validate CCT every 90 days per ANSI C78.377
UV Radiometer	±2μW/lm	Check filter output quarterly in λ=300–400nm range

Critical thresholds:

Animatronic Face/Details: 75–100 lux (metered at 50cm ±5cm)

Background Elements: 50–75 lux

UV Exposure: <30μW/lm integrated

IR Heat Load: <75W/m² radiant flux

Calibration workflow:

Stabilize lights for ≥30 minutes at 100% output

Position meter perpendicular to light beam

Record 10 readings over 2 minutes; reject if σ>5%

Adjust dimmers until value matches baseline ±5 lux

Dust Impact & Failure Costs

Operational Consequences:

Unclean Fixtures: Dust layers ≥0.1mm thick absorb 18–22% lumens, forcing operators to increase brightness 25% – accelerating LED driver aging by 3× and cutting 50,000-hour lifespan to 32,000 hours

Uncalibrated Systems: 10 lux undetected decay equals $280/year extra energy costs/fixture and ∆E>2.0 color shift in animatronic fabrics within 18 months

UV Filter Neglect: Blocking efficiency drops ≤85% after 5mg/cm² dust accumulation, causing equivalent UV exposure of 50μW/lm – fading silicone skins 2.4× faster

Maintenance ROI Metrics:

Activity	Cost/Fixture	Prevented Loss
Monthly Cleaning	$12.50	83/year energy + 200 bulb life
Bi-annual Calibration	$45	$4,500 animatronic repaint delay
Filter Replacement	$90/3 years	$18,000 material conservation
