1. Basic Speaker & Horn Systems: Utilize high-output 60W to 200W speakers paired with 10-inch to 18-inch horns for projection. Basic Speaker & Horn SystemsYou're typically looking at a single robust driver handling 60 to 200 watts RMS, paired with a directional horn between 10 inches (250mm) and 18 inches (457mm) in diameter. The goal is hitting sustained sound pressure levels (SPL) of 110 dB to 125+ dB measured at 1 meter, cutting through ambient park noise. Heavy-duty 2.5 to 3 kg neodymium magnets keep components stable during movement cycles, and these setups usually operate efficiently within a nominal impedance of either 4 ohms or 8 ohms, tolerating voltage inputs between 12V DC for mobile units up to 120V AC for fixed installations. The foundation relies on a high-excursion driver (usually 25-40mm peak-to-peak) housed in a rigid frame, often cast aluminum for heat dissipation and vibration resistance, built to endure operating temperatures reaching 85°C (185°F) during peak summer operation without significant coil demagnetization causing a >10% loss in SPL output. Power handling is critical, defined by continuous RMS ratings – using a 60W speaker with a 100W peak amplifier offers a sensible safety margin of roughly 40%, extending the driver cone's projected lifespan beyond 15,000 operating hours despite the constant stress of low-frequency roars averaging 50-80Hz fundamental tones with bursts hitting lower harmonics near 30Hz. Voice coil diameters typically span 1.5 inches (38mm) to 3 inches (76mm) in these applications, with larger coils offering superior thermal power handling capability, allowing the driver to dissipate the ~35% of electrical energy inevitably converted to heat (around 21-70 watts in the 60W-200W range) more effectively during extended roars lasting 3-8 seconds per sound file trigger. Crucially, the horn component attaches directly to the driver’s throat, utilizing its exponential or radial flare design geometry to dramatically increase the system's acoustic efficiency by 15-20 dB compared to a bare driver, significantly boosting projected distance and directionality. Key horn parameters include the flare rate (angles often between 60° and 90°), throat entrance diameter (commonly 1 inch/25mm or 1.4 inches/35mm matching standard compression drivers), and overall physical length proportional to desired low-frequency cutoff, where an 18-inch horn might effectively project frequencies down to approximately 800Hz, while a 14-inch horn starts rolling off below 1.2kHz. Horn materials range from UV-stabilized ABS plastic (1.5-3mm thick) for weight savings (often <2kg) and lower cost to galvanized steel (~1.2mm gauge, weighing 3-5kg) or composite fiberglass for maximum rigidity and resilience against accidental impact forces exceeding 50 joules. Mounting the horn assembly 1-2 meters off the ground, angled forward at 15°-30° relative to horizontal, optimizes projection over visitor pathways, minimizing ground absorption losses that can cut midrange SPL by 3-5 dB per 10 meters of distance traveled; integrated IP54 or IP65-rated enclosures protect internal electronics from water ingress and dust accumulation (>90% relative humidity tolerance), ensuring reliable year-round operation over an expected 5-8 year outdoor service life. Proper wiring gauge is essential: for a 100-watt system at 8 ohms drawing ~3.5 amps @ 28V, using 18 AWG wire over a 50ft (15m) run results in less than a 7% voltage drop, preserving amplifier power and maintaining target SPL within a ±1 dB tolerance. Final system tuning involves setting amplifier gain to achieve maximum output while staying below the speaker’s thermal and mechanical limits (visually inspect for >2mm excessive cone movement or audible distortion >5% THD), and using parametric EQ centered around 2kHz with a Q factor of 1.5-2.0 to boost intelligibility over distance, compensating for the horn’s inherent midrange resonance peaks and dips that can vary in amplitude by ±6dB across its passband between 1kHz and 5kHz. Pre-Recorded Roar PlaybackPre-recorded roar playback units form the sound library backbone for modern animatronics, relying on digital audio files (typically .WAV or .MP3 formats) stored on solid-state memory. Industry standards require minimum 16-bit/44.1kHz sample rates to ensure frequency reproduction up to 20kHz, with advanced systems utilizing 24-bit/96kHz files capturing broader dynamic ranges exceeding 110dB SNR. These modules operate within DC voltage inputs of 9V-24V, drawing standby currents below 50mA while capable of peak power consumption reaching 15W during audio decoding. Storage capacities generally span 8GB to 128GB, supporting 500-5,000 distinct roar samples depending on file durations averaging 2-8 seconds and compression ratios. Digital storage begins with industrial-grade microSD cards (Class 10 UHS-I, rated for -25°C to +85°C) or soldered eMMC flash chips (MLC NAND type rated for 30,000+ write cycles), both interfacing through SPI or SDIO busses running at 50MHz clock speeds; storage modules prioritize sequential read speeds >90MB/s to ensure zero audio dropouts (>2ms buffer underrun protection) during playback of large multi-layer sound files simultaneously decoding 4-8 tracks, each requiring ~1.2-2.4Mbps bandwidth for uncompressed 16-bit/48kHz stereo streams, while MP3 files at 320kbps reduce bandwidth needs by ~75% but sacrifice transient accuracy. Playback devices feature dedicated audio decoders (e.g., VS1053B chips) resolving 44.1kHz streams with <0.01% harmonic distortion alongside ARM Cortex-M4 processors clocked at 120-180MHz managing file systems and triggering protocols; interfaces include GPIO connectors accepting dry-contact closure triggers with <2ms response latency, RS-485 serial links transmitting show-control cues across 1,200m cable runs, and CAN bus networks handling daisy-chained installations spanning 100+ dinosaurs; critical for synchronization, MIDI-over-DMX protocols maintain timing deviations below ±5ms relative to mechanical movements, while embedded DACs convert digital signals at 110dB dynamic range into analog outputs driving line-level connections (±2V) into amplifiers. System durability demands conformal-coated PCBs resisting 95% relative humidity and aluminum enclosures dissipating 8-12W thermal loads via surface areas calculated at ≥80cm²/W to maintain component temperatures below 60°C ambient at 35°C; operational lifetimes average ≥60,000 power-on hours (approx. 7 years continuous duty) with MTBF statistics exceeding 100,000 hours for solid-state components, while electrolytic capacitors are derated to 50% of 105°C-rated 6,000-hour lifespans for margin, and connectors employ gold-plated contacts maintaining <10mΩ resistance through 5,000+ mating cycles. Air Compressor-Driven Growl SystemsAir compressor-driven growls replicate visceral dinosaur vocalizations using regulated pneumatic pressure (typically 80-100 PSI) generated by oil-free piston compressors drawing 550W-1,200W at 120V AC. These systems produce low-frequency energy (dominant range 40-150Hz) through rapid air release (0.5-1.2 cubic feet/minute per valve) via stainless-steel or brass orifices (1.5mm-3.5mm diameter), achieving peak SPLs of 115-128 dB at 0.5m distance with a distinctive 250-400ms attack time. Initial setup costs average 380-950 per unit excluding compressors serving multiple dinosaurs. Industrial systems utilize quiet scroll compressors (48-52 dBA @ 1m) with 8L-22L air tanks (rated for 150 PSI max) and 0.8-1.6 CFM free air delivery at 50% duty cycle capacity, ensuring 10-25 growls/hour without refill delays; compressors connect via Ø6mm-Ø10mm polyurethane tubing (0.35mm wall thickness) with pressure drop <2 PSI per 5m run, distributing air to nitrogen-filled accumulators (300mL-600mL volume) acting as local reservoirs to maintain instantaneous flow rates >18 L/min during valve actuation. Critical components include desiccant dryers removing >99% moisture preventing ice blockages at operational humidity >70% RH, and automated drain valves purging condensate every 120 minutes ±15s to preserve air quality ISO 8573-1 Class 2 standards. Valve Mechanics & Acoustic Generation Solenoid valves (24V DC coils drawing 4.8W-7W) with 2/2-way direct action (response time <15ms) control air release into tuned resonator chambers; quick-exhaust valves dump air 30-50% faster than supply valves, creating sharp acoustic transients with rise times <5ms – the sound originates from either vibrating steel reeds (0.1mm-0.3mm thickness resonant at 60Hz±15%) or Helmholtz resonators (cylindrical cavities Ø30mm-Ø80mm x 50mm-120mm length) generating specific fundamental frequencies (e.g., Ø50mm cavity yields 85Hz±3Hz). Orifice geometry is precision-machined: convergent nozzles (15° entry angle) accelerate air to Mach 0.3 velocities, striking resonator components to produce harmonics extending to 2.5kHz at -20dB/octave rolloff. Solenoid-Actuated Click & Grind MechanismsSolenoid click/grind mechanisms deliver precise mechanical sound effects using electromagnetic actuators (typically 12V or 24V DC, drawing 0.8-3.5A surge current) generating linear forces from 6N to 20N at 2ms-8ms response times. Mounted inside joint cavities, these components strike metal plates at frequencies between 8Hz and 35Hz to simulate bone/jaw articulations, producing sharp transient SPLs peaking at 86-92dB @ 0.5m with distinct frequency signatures centered at 750Hz-4kHz. Typical component lifecycles exceed 500,000 operating cycles at 20°C ±5°C ambient temperatures, with per-unit manufacturing costs falling within 22-65 for mid-tier park installations. Actuator Physics & Construction High-impact solenoids utilize 25% cobalt-iron alloy laminations (0.35mm thickness) stacked to core depths of 18-28mm to minimize eddy current losses below 8% at 30Hz operating frequencies, while oxygen-free copper windings (AWG 22-26 gauge) provide resistance values from 3Ω to 8Ω enabling power dissipation capped at 6.5W continuous without exceeding 65°C coil insulation limits; plunger assemblies incorporate hardened steel shafts (HRC 55-60, Ø4mm-Ø8mm diameter) with PTFE-impregnated bronze bushings reducing sliding friction to μ=0.08-0.12 and neodymium return magnets (N35-N42 grade) generating 0.5-1.2N reset forces. Key metrics: Stroke lengths calibrated to 3±0.15mm (simulating joint play), plunger mass optimized at 25-40g to balance kinetic energy output (≈15-35mJ) against impact-induced structural resonance frequencies <250Hz. Mechanical Interfaces & Acoustic Transmission Custom spring-steel striking arms (300-500mm length, 0.8-2mm thickness) amplify solenoid impulses through lever ratios between 3:1 and 6:1, transferring energy to hardened impact surfaces – typically case-hardened steel plates (surface hardness 58-62 HRC) or ceramic tiles (1,200-1,500 HV) mounted on 6-12mm thick neoprene dampeners to isolate chassis vibrations; impact geometry uses 15°-35° oblique contact angles to generate broadband noise rather than pure tones, with surface textures (grit-blasted Ra=3.2-6.3μm) increasing high-frequency energy content by 6-10dB above 2.5kHz. Resonance chambers behind targets act as Helmholtz amplifiers tuned to 1.2kHz±200Hz with 60-120mL internal volumes, boosting output 3-8dB at target frequencies while attenuating sub-800Hz rumble by -12dB/octave. Control Electronics & Synchronization Drive circuits employ H-bridge MOSFET arrays (R<sub>DS(on)</sub> ≤16mΩ) switching at 20kHz PWM frequencies with current limiting set at 110%-130% of nominal to maintain peak force consistency within 10% tolerance throughout voltage fluctuations; trigger signals synchronize to jaw servos via opto-isolated inputs accepting 0-5V logic levels with <250μs latency, while programmable pulse controllers adjust strike duration from 10ms to 200ms to simulate sliding scrapes or single clicks. Systems feature thermal protection cutting power at ≥85°C detected by NTC sensors (±1°C accuracy) and automatic restrike routines during failed closures using 5ms re-trigger delays. Environmental & Duty Cycle Testing Components withstand vibration profiles of 5G RMS (10-500Hz random) and operational humidity cycling between 15%-98% RH through conformal-coated PCBs and stainless hardware; accelerated life testing runs 500 cycles/minute for 1,200 continuous hours while monitoring contact erosion below 0.02mm/100k cycles and coil insulation degradation showing <10% resistance drift. Field maintenance requires re-torquing mounting bolts (1.2-2.0Nm) every 250 operational hours and cleaning guide rails with IPA every 500 hours to maintain performance consistency within ±3dB SPL variance over a 5-year design lifecycle. Installation Specifications Mounting requires ±0.1mm axial alignment tolerance and minimum 3mm air gaps around moving parts to prevent binding; wire routing uses shielded 20-22AWG cables with ferrite beads placed <75mm from solenoids to suppress EMI emissions below FCC Part 15 Class B limits. For optimal acoustics, position mechanisms within 200-500mm of animatronic skin surfaces using 30±5 durometer silicone isolators to transmit frequencies above 500Hz without phase cancellation – test configurations should achieve peak SPL variance <±1.5dB across six microphone positions at 1m distance. Multi-Part Sound Mixing & Layering TechniquesMulti-layered sound design creates hyper-realistic roars by blending 3–7 discrete audio elements with precise spectral and temporal alignment. Industry mixes allocate ~60% RMS energy below 250Hz for visceral impact, 30% at 800Hz–3kHz for articulation, and 10% >5kHz for air/decay. Mix buses operate at 32-bit float depth and 48kHz minimum sampling, with layers phase-aligned within ±0.5ms to prevent comb filtering exceeding -3dB cancellation at crossover points. Production workflows utilize DAWs with 128+ track counts, dedicating 18–32 concurrent channels per animatronic. 1. Layer Definition & Spectral Carving Foundation Layer (L1): Recorded via hydrophones in resonant tanks capturing <200Hz fundamentals at -6dBFS RMS; processed through 48dB/octave high-pass filters with 24Hz cutoff to eliminate subsonics, then compressed using 4:1 ratio and 80ms attack to stabilize levels within ±1.5dB variance. Throat Resonance (L2): Derived from vibration transducers on steel plates, emphasizing 80–500Hz resonance peaks; treated with parametric EQ boosting Q=1.8 at 210Hz by +4dB, while cutting 180Hz by -3dB to reduce muddiness. Oral Articulation (L3): Foley-recorded jaw snaps/grinds (dominant 2k–8kHz) normalized to -10dBFS peak; spatially widened via haas delays (8–40ms differentials) and isolated with dynamic EQ ducking 500Hz by -6dB when L1 exceeds -12dBFS. 2. Dynamics Processing Hierarchy Multi-Band Compression: Main bus deploys 3-band processor: Low Band (20–160Hz): 3.5:1 ratio, 150ms attack, 400ms release containing peaks >+9dB Mid Band (160–800Hz): 2.8:1 ratio, 45ms attack, 200ms release with sidechain triggered by L1 High Band (>800Hz): 8:1 limiting clamping transients >3dB over threshold Transient Shaping: Applied per layer: L1 attack boosted +8% (sustain reduced -15%) L3 decay extended +22% Crest factor maintained at 13–16dB post-processing 3. Spatialization Protocols Directional Panning: L3 positioned ±15–30% L/R based on jaw kinematics Binaural Depth: Convolution reverb using 6–24ms IRs captured at 1.5m distance Air Absorption: High-shelf filter (-1.8dB/octave >5kHz) simulating 10m propagation 4. Real-Time Mix Automation Movement-Responsive Gain:

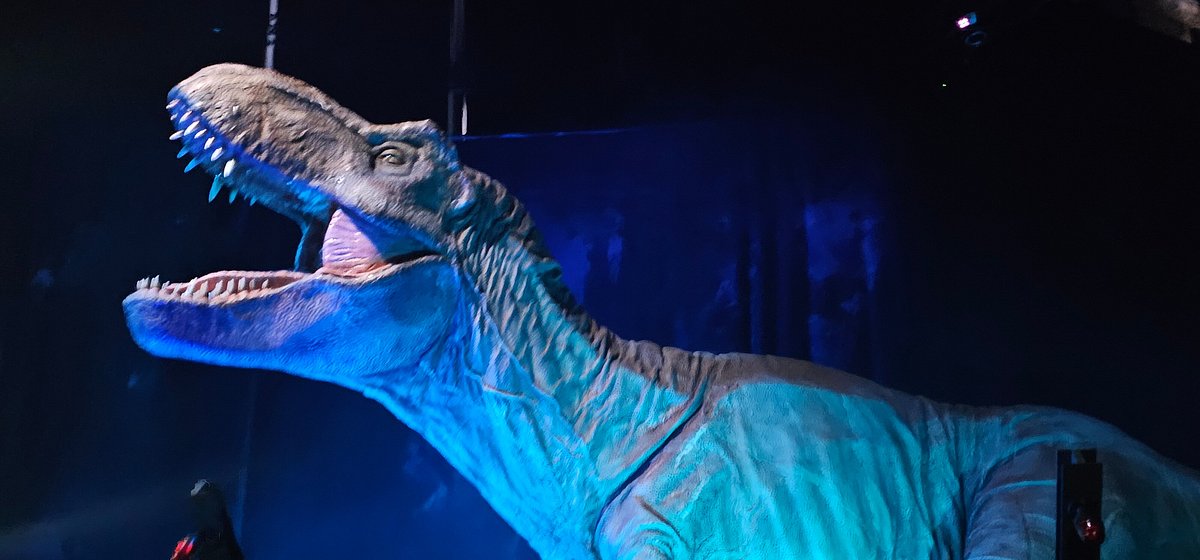

Precision Sound Effects Controllers & MixersPrecision sound controllers orchestrate animatronic dinosaur roars via industrial-grade processors (e.g., ARM Cortex-A7 cores clocked at 650MHz±5%) running real-time operating systems with ≤500μs interrupt latency. These units manage 8–24 independent audio channels, applying parametric EQs (±15dB gain in 0.1dB steps) and dynamics processing at 48kHz/32-bit resolution. Operating within 9–36V DC inputs, controllers draw idle currents of 85mA and peak loads of 18W while storing 500+ sound cues on -40°C-rated eMMC storage. Housing exceeds IP66 standards with die-cast aluminum chassis (2.5mm wall thickness). Mixing & Signal Routing Audio backplanes support:
Operational specs include: Humidity resilience (30–95% RH non-condensing) Vibration resistance (7.5 Grms @10–500Hz) MTBF rating (62,000 hours @45°C ambient) Power Management Subsystem Efficiency optimized through: 88% efficient 12V buck converters (losses ≤1.8W @ full load) Zero-crossing switched outlets (snubbing RC networks rated 100,000 cycles) Battery-backup circuits sustaining 20+ minutes runtime on 26Ah lithium packs Calibration Benchmarks: Gain tracking error: ≤0.04dB @ 1kHz Phase response deviation: ±0.5° across 20Hz–20kHz Clock jitter: ≤5ps RMS |
