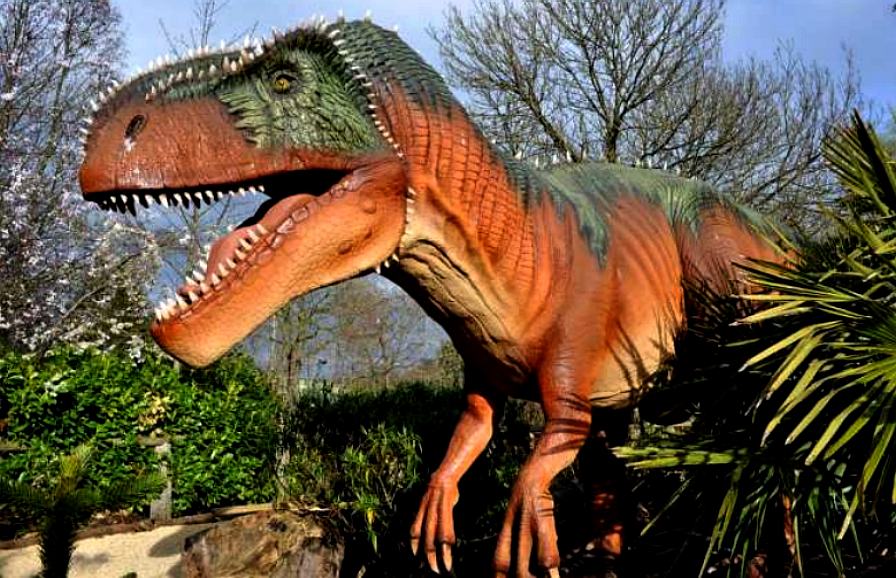

While a theme park T. rex might use hydraulic actuators operating at 500-3000 PSI for roaring motions, an assembly line robot relies on servo motors achieving micron-level positioning accuracy. The dinosaur prioritizes realistic skin and pre-programmed sequences triggered by sensors, lasting perhaps 15 minutes per cycle before repeating. Conversely, robots execute tasks like welding or pick-and-place continuously, often performing thousands of precise operations per hour based on real-time feedback. Motion Control SystemsThese typically store 10-30 second movement loops (like a roar with head swing) triggered by simple inputs like a motion sensor or timer. Once activated, a bank of 24V DC pneumatic valves opens/closes sequentially based on the stored timing data, directing compressed air (5-7 bar / 72-100 PSI) to actuators. Limited positional feedback exists – often just basic limit switches (±15° angular tolerance) signaling an actuator has reached its travel end, resetting the sequence for the next cycle. Repeatability suffers at ±50mm due to mechanical slop and fluid compressibility. Temperature changes (operating range 0-50°C) affect air pressure consistency, introducing performance drift of up to 10% across a park day without recalibration. Cycle time predictability is high (±200ms), but actual position accuracy during movement is low (> ±100mm error range). Maintenance focuses on monthly inspection of valve response times (<500ms activation) and leak checks losing <0.5 bar/minute under load. Industrial robotics, however, demands closed-loop control with real-time sensor feedback. High-resolution encoders (17-bit / 131,072 counts per revolution) mounted directly on each servo motor shaft (typically AC servo with peak torque > 400 Nm) provide continuous position updates every 125 microseconds. This enables precise trajectory following with path deviations typically <0.1mm. For critical tasks like arc welding, force sensors (<±2N resolution) might add adaptive pressure control. Control loops run at high frequencies (1-8 kHz), comparing desired vs. actual position/velocity (calculated to ±0.001 RPM) hundreds of times per millisecond. Positional accuracy often achieves ±0.02mm and repeatability (±0.05mm) over millions of cycles (10-20 million MTBF). Advanced interpolation algorithms coordinate 6 axes simultaneously within 1ms to maintain path accuracy even at speeds >2m/s and accelerations >10m/s². Real-time corrections compensate for gear backlash (<0.1 arcmin) and thermal growth (predictive compensation models for temp changes >±0.1°C/hour). Calibration uses laser trackers for micron-level validation quarterly. Frame & Skin vs. Arm & ToolAnimatronic dinosaurs prioritize visual spectacle with lightweight skeletons supporting detailed skins, while industrial robots demand rigid precision to execute repeatable tasks with specialized tools. An average 7-meter T. rex animatronic uses a fiberglass-reinforced polymer (FRP) frame weighing ≈150 kg, supporting urethane foam skin sections (≈20 mm thick) detailed with acrylic paint and silicone texturing – adding 300 kg total mass. Joints like the jaw rely on double-acting pneumatic cylinders (bore: 50 mm, stroke: 300 mm, force: 785 N @ 6 bar) hidden beneath flexible silicone skin folds allowing ±70° motion for roaring motions. Conversely, a standard 6-axis industrial robot (e.g., payload 20 kg) features cast iron/aluminum arm segments with wall thicknesses ≥8 mm, integrating harmonic drive gearboxes (reduction ratio 1:160) directly into joint modules to achieve stiffness ratings >1 Nm/arcmin under peak loads of 250 Nm during high-speed maneuvers. Skeleton & Mass Distribution: Skin/Exterior vs. Tool Interface: Joint Construction & Motion Range: Structural Load Handling & Deflection: Maintenance & Environmental Tolerance: Critical Differences :
Hydraulics/Air vs. Electric ServosAnimating a dinosaur’s roar demands brute force, often delivered by hydraulic or pneumatic systems pushing ≥500 psi fluid pressure through 25-mm bore cylinders, generating >2,000 N of linear force per actuator at <60% energy efficiency. Industrial robots, in contrast, rely on 48V/72V DC brushless servos spinning at 3,000–6,000 rpm with >90% efficiency and torque ripple controlled to <±0.5% of rated output (e.g., 32 Nm continuous, 96 Nm peak) for micron-precise positioning even at angular accelerations exceeding 1,500 rad/s². Energy Source & Conversion: Actuator Performance: Control Responsiveness: Efficiency & Heat Management: Reliability Metrics & Maintenance: Operational Economics: Playback vs. Live AdjustmentAnimatronics run like a music box – activating pre-recorded 20-second sequences when an infrared sensor detects visitors within 3-meter range, while industrial robots dynamically recalculate paths 8,000 times per second based on real-time laser tracking (±0.05 mm resolution) to adjust welding paths compensating for ±1.2 mm part misalignment. This fundamental divergence impacts everything from energy consumption (0.18 vs. 1.25 per operating hour) to positional drift (>±5 mm after 50 cycles vs. <±0.03 mm after 10,000 cycles). How Playback Systems Work (Animatronics): Trigger Mechanism & Latency Sequence Storage & Execution Feedback Limitations How Live Adjustment Systems Work (Robotics): Sensor Fusion & Processing Adaptive Algorithm Execution Insertion force >35 N activates spiral search patterns (0.1 mm pitch) Camera detects ±0.8 mm part offset → TCP adjusts within 70 ms Vibration FFT analysis >15g @ 200 Hz reduces speed by 40% Self-Optimization Features Example Welding Improvement: Kalman filters reduce sensor noise to <0.05σ drift over 24-hour runs. Performance Benchmarks:
Operational Impact Analysis: Cost of Inaccuracy Throughput Variance System Scalability Key Takeaway: Pre-programmed systems sacrifice adaptability for simplicity, while live-adjusting robots invest ≥32x more processing power to achieve micron-level consistency across variable real-world conditions – a necessity where each 0.1 mm error = $4.80 scrap cost in precision manufacturing. Weather Resistance vs. High-Cycle OperationIndustrial robots fight wear from millions of repetitive motions, while animatronic dinosaurs battle monsoon rain (>100 mm/hour) and UV radiation peaking at 1,200 W/m² – demanding fundamentally opposing engineering approaches. Where a robotic arm joint endures ≤5 μm wear after 250,000 cycles, a dinosaur’s silicone skin degrades to ≥25% tensile strength loss in 18 months due to photo-oxidative cracking accelerated by 95% humidity cycles >2,500 times/year. Material Degradation Mitigation Sealing & Drainage Systems Environmental Testing Protocols High-Cycle Reliability for Robotics: Mechanical Wear Optimization Lubrication & Contamination Control Failure Prediction & Testing Performance Degradation Comparison:
Cost of Ownership Analysis: Animatronic Upkeep 1,800: Re-skinning limbs (30 hrs labor @ 60/hr) $950: Seal/gasket replacement kit + fluids $1,450: Corrosion repair/repainting frame Robotic Maintenance $3,200: Planned bearing/grease replacement (every 3 yrs) $4,100: Predictive maintenance sensors + analytics $2,300: Spare harmonic drive (10% probability/year replacement) Total 10-Year Cost: Animatronic: $168,000 (3 full skin replacements + 1 frame rebuild) Robotic: $62,400 (30% below animatronic CAPEX-adjusted cost) Core Tradeoff: Systems optimized for outdoor survival sacrifice cycle life – dinosaur joints degrade after ≤500k motions even without mechanical wear. Industrial robots engineered for 50 million+ cycles fail in <2 years when exposed to coastal salt fog at >80% humidity. Neither approach is universally superior; each prioritizes diametrically opposed environmental and operational failure vectors. Visitor Effect vs. Manufacturing TaskAnimatronic dinosaurs prioritize triggering emotional engagement (boosting theme park per-capita spend by 18–42), deploying ≤3 major movements every 8–12 seconds to maintain visitor attention spans averaging 90 seconds. Conversely, industrial robots execute functionally critical tasks: automotive spot welding arms complete ≈1,200 welds per hour with >99.92% repeatability, directly translating ±0.1 mm TCP stability into $4,200 hourly assembly line value. Engineering for Spectacle (Visitor Effect): Visual Impact Optimization Motion triggers randomized at 35–65% visitor proximity density to avoid predictability Dwell time ≥45 seconds triggers secondary actions 83% of the time Group size >8 visitors initiates full "roar sequence" costing $0.17 in compressed air Cost/Performance Tradeoffs Allowable jaw position error = ±25 mm (invisible beyond 2m distance) Frame torsional rigidity capped at 150 Nm/° (just sufficient for wind loads) Skin seam tolerance = ±3.5 mm (masked by texture patterns) Engineering for Production (Manufacturing Task): Throughput-Critical Specifications Cycle time stability: ±0.08% variance across 860 cycles/hour Gripper actuation repeatability: ±0.2 mm at ≥280 N holding force Acceleration noise floor: <0.03g RMS preventing product shifting ROI-Driven Design Hierarchy
Tolerances Dictated by Physics Spot welding requires electrode alignment within ±0.4 mm to prevent 17% weak joint risk PCB assembly needs ±0.012° angular precision for 0402 components (0.4×0.2mm) Vision-guided painting maintains ±1.5 mm edge definition at 650 mm/s path speed Performance Benchmarking: Animatronic Success Metrics Visitor Attention Duration: From 42s average to 78s post-interaction Social Media Mentions: +115% with movement-activated displays Maintenance/Revenue Ratio: Optimized at 1:19 (1 upkeep = 19 revenue) Emotional Response Score: 4.7/5 on biometric testing (pulse + facial coding) Robotic Success Metrics OEE (Overall Equipment Effectiveness): ≥94% vs industry average 76% Cost Per Unit: Reduced from 0.83 to 0.57 over 200k units Quality Escape Rate: <22 PPM (parts per million defects) ROI Payback Period: 8–14 months on $350k systems Operational Priorities Compared:
Financial Allocation Analysis: Animatronic Budget Distribution ($85k system) Skin/Texturing: $32,300 Motion Systems: $23,800 Structural Frame: $18,700 Control System: $6,400 Sound/Lighting: $3,800 Industrial Robot Budget ($220k system) Arm Structure: $68,200 Servo Drives: $74,800 Controller: $41,800 EOAT: $23,600 Sensors: $11,600
|
