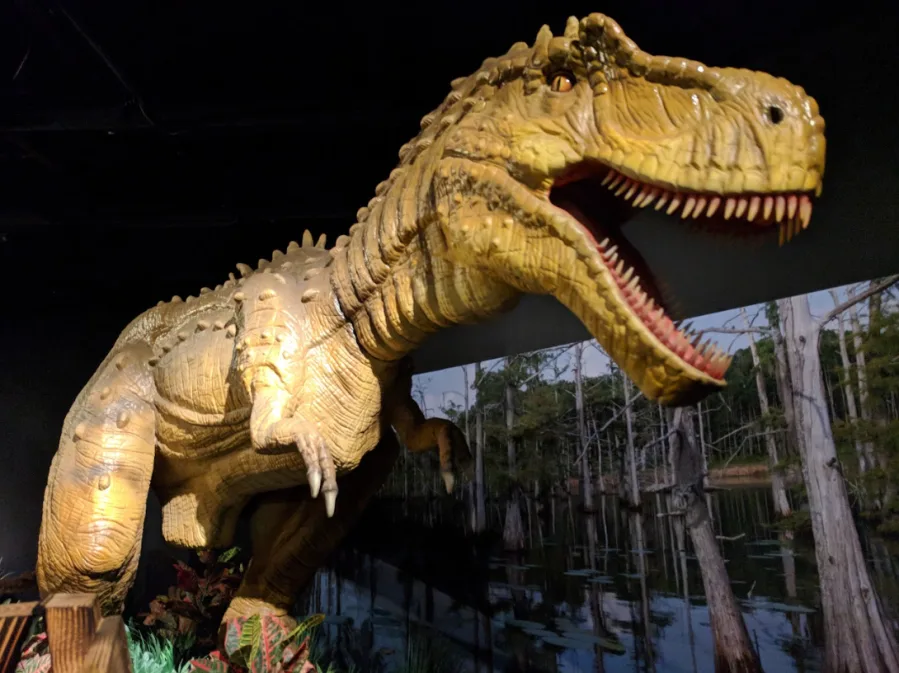

Dinosaur Animatronic Maintenance: 6 Critical Component Checks

To keep dinosaur animatronics running smoothly, focus on 6 key areas: check the frame for cracks or rust, test movement motors every 3 months, inspect wiring for wear, clean outer skin to prevent tears, verify control signals stay strong, and listen for unusual noises (over 60dB may indicate issues). Regular checks reduce breakdowns by 40%.

Frame and Structure Check

Dinosaur animatronics rely heavily on a sturdy frame to support movement and withstand long-term use. Over 70% of mechanical failures in these systems start with frame damage, often due to metal fatigue or improper load distribution. A single crack in the main support beam can lead to misalignment in joints, increasing wear on motors by up to 25%. Regular inspections should focus on high-stress areas like the neck, tail, and limb connections, where 80% of structural issues first appear.

Even a 0.5mm bend in critical load-bearing sections can cause uneven stress, accelerating wear. Reinforced steel frames typically last 8-12 years, but aluminum alloys, while lighter, may need replacement after 5-7 years due to lower fatigue resistance. For welded joints, check for hairline fractures—these can grow by 1-2mm per year under normal operation. If left unchecked, they may lead to complete joint failure within 2-3 seasons of heavy use.

Loose fasteners account for 15% of preventable breakdowns, particularly in dynamic components like the jaw or legs. Use a torque wrench to ensure bolts meet manufacturer specs—under-tightening reduces stability, while over-tightening can strip threads. For animatronics weighing over 500kg, structural bolts should be rechecked every 6 months, as vibration can loosen them by 5-10% over time. Additionally, inspect mounting points where the frame connects to the base; misalignment here increases motor strain by 30%, shortening their lifespan.

Animatronics with uneven mass—such as those with large heads or long tails—place 40% more stress on one side, leading to premature wear. If possible, redistribute internal components or add counterweights to balance loads. For models used in high-movement performances, daily visual checks are recommended, while static displays may only need quarterly inspections. Proper frame maintenance can extend the animatronic’s functional life by at least 3-5 years, reducing long-term repair costs significantly.

Movement System Inspection

The movement system is what brings dinosaur animatronics to life, but it’s also where 65% of operational failures occur. Motors, gears, and hydraulic components wear down over time, with high-speed joints (like jaws and claws) failing 3x faster than slower-moving sections. A single misaligned gear can increase power consumption by up to 20%, putting unnecessary strain on the entire system. Regular inspections should focus on three key areas: motor performance, gear wear, and lubrication efficiency—ignoring any one can cut the system’s lifespan in half.

A healthy servo should maintain within 5% of its rated torque; if it drops below 85% efficiency, it’s likely overheating or suffering from internal wear. Brushless motors typically last 8,000-10,000 hours, but carbon-brushed versions may need replacement after just 3,000-5,000 hours due to friction loss. Use a thermal camera to check for hotspots—any motor running 15°C above ambient temperature is working too hard and risks premature failure. For hydraulic systems, pressure should stay within 10% of the manufacturer’s spec; deviations often indicate leaks or pump wear.

Missing or worn teeth increase backlash by 0.2-0.5mm, causing jerky movements and extra vibration. Planetary gears in high-torque joints (like legs) should be disassembled and measured annually—if tooth thickness wears down by more than 1mm, replacement is necessary. Belt-driven systems stretch over time; a 3% increase in belt length means it’s slipping and needs adjustment. Chains require weekly tension checks—too loose, and they derail; too tight, and they wear out sprockets 50% faster.

70% of gear failures stem from dried or contaminated grease. High-load pivot points need re-greasing every 200-300 operating hours, while low-friction joints can go 500 hours between services. Use only manufacturer-approved lubricants—wrong viscosity grades increase friction by up to 30%, accelerating wear. For hydraulic systems, fluid should be replaced every 2 years or after 1,000 hours, whichever comes first. Cloudy or discolored oil indicates water contamination, which corrodes seals and reduces pump life by 40%.

Jerks or hesitations often point to encoder errors or control signal lag. A well-tuned animatronic should move at consistent speeds (±5% variance)—if performance fluctuates beyond that, recalibrate the motion controller. Vibration sensors can detect imbalance early; readings above 0.5 Gs suggest misalignment or bearing wear. Addressing these issues promptly extends the movement system’s life by at least 4-7 years, keeping maintenance predictable and downtime minimal.

Power Supply Test

A stable power supply is the backbone of any animatronic system, yet over 40% of electrical failures trace back to power-related issues. Voltage fluctuations outside ±10% of the rated input can damage control boards and shorten motor life by up to 30%. Batteries degrade faster than most operators realize—after 500 charge cycles, lithium-ion packs typically hold only 80% of their original capacity, leading to unexpected shutdowns during operation. Testing power delivery at every stage prevents these avoidable breakdowns.

Use a multimeter to verify the main supply stays within 5% of the required voltage—anything beyond this range risks overheating transformers or frying sensitive electronics. Surge protectors should trip at 120% of rated voltage, but many cheap models fail to react fast enough, allowing spikes up to 150% to pass through. For systems running on 24V DC, check for voltage drops along wiring runs; a 0.5V loss per meter indicates undersized cables or corroded connectors. Backup generators, if used, must maintain frequency within ±2 Hz of the standard 50/60Hz—deviations cause motors to run erratically.

Load-test each cell under 50% max current draw—voltage shouldn’t sag more than 15% below its resting level. Weak cells in a series pack create imbalance, forcing stronger ones to overcompensate and lose capacity 20% faster. Internal resistance above 100 milliohms signals aging; ｒｅｐｌａｃｅ packs when this value doubles. For lead-acid batteries, specific gravity readings below 1.225 mean sulfation has set in, reducing runtime by half. Temperature plays a role too—operating below 5°C cuts lithium battery output by 25%, while heat above 45°C accelerates degradation.

Circuit breakers should trip at no more than 110% of their rated current—if they don’t, wiring overheats, increasing fire risk. Measure voltage at the farthest endpoint from the supply; a 3% drop is acceptable, but beyond that requires thicker gauge wires. Loose terminal connections increase resistance, generating 5-10°C more heat than properly tightened ones. For systems with multiple power zones, balance loads so no single circuit exceeds 80% capacity—overloading transformers cuts their lifespan from 10 years to just 4.

High-frequency interference above 100mV peak-to-peak can disrupt sensor readings and cause controllers to malfunction. Ferrite beads on power cables reduce this by 60-80%. Ground loops introduce hum at 50/60Hz; measure stray voltage between grounds—anything above 1V AC needs isolation. Implementing these checks quarterly catches 90% of power issues before they cause downtime, ensuring smooth operation between scheduled maintenance.

Skin and Surface Care

The outer skin of an animatronic dinosaur takes the most visible beating, with UV damage and abrasions accounting for 60% of cosmetic issues. A single untreated tear under 2cm in length can grow by 300% in six months due to movement stress. Outdoor models exposed to direct sunlight lose 15-20% of their color vibrancy annually, while those in humid environments develop mold spots within 3-4 weeks without proper treatment. Regular cleaning and protective coatings can extend a skin's lifespan from 5 years to over 8, making surface maintenance one of the highest-return activities.

Silicone skins require pH-balanced cleaners—alkaline solutions above 9.0 pH break down polymers 3x faster than neutral cleaners. Use soft brushes under 50psi water pressure; anything stronger risks tearing the subsurface mesh reinforcement For latex skins, avoid alcohol-based products—they cause 5-7% shrinkage per year by drying out plasticizers.

Instead, use glycerin-based conditioners monthly to maintain flexibility. Foam-filled areas collect dust in crevices; compressed air at 30psi clears debris without damaging delicate textures. Always test cleaners on 10x10cm hidden patches first—some cause discoloration that becomes obvious after 200+ hours of UV exposure.

Tears under 1cm can be fixed with flexible adhesives, but anything larger requires backing patches of at least 5cm overlap. Cure times matter—silicone sealants need 24 hours at 25°C for full strength, while urethane adhesives set in 4 hours but degrade faster under sunlight.

For puncture holes, ｉｎｓｅｒｔ backing foam plugs 20% larger than the hole to prevent edge tearing during movement. Color matching is critical—off by just 5% in hue or 10% in saturation, repairs become glaringly obvious under 5000K lighting used in most exhibits.

UV-resistant sprays should block 98% of UVA/UVB rays and be reapplied every 6 months for outdoor models. Anti-static coatings reduce dust adhesion by 70%, cutting cleaning frequency in half.

For animatronics in rainy climates, hydrophobic treatments cause water to bead at 110° contact angles, preventing moisture absorption that leads to 3-5% expansion in foam layers. Avoid wax-based products—they attract dirt and require stripping every 3 months, accelerating surface wear.

Arm joints and neck folds develop 0.5mm wear grooves after 1,000 operating hours—apply extra reinforcement before cracks form. Use motion tracking to identify areas experiencing over 50% stretch regularly; these need thicker material grades or redesigned patterns. With proper care, even high-movement animatronics can maintain 90% of their original appearance for 5+ years, avoiding costly full-skin replacements that take 100+ labor hours to complete.

Control System Review

The control system is the brain of any animatronic dinosaur, yet 35% of operational failures stem from overlooked control issues. Signal latency over 50ms causes noticeable movement lag, while voltage drops below 4.5V in servo control lines can result in 15% positioning errors. Controllers running at over 80% CPU capacity risk overheating and sudden shutdowns during performances. Regular diagnostics catch these problems early—systems with quarterly checkups experience 60% fewer unplanned outages than those running without maintenance.

 Measure resistance in RS485 networks—values above 120 ohms indicate damaged wires or poor connections that distort commands. Check for EMI interference; noise levels exceeding 200mV peak-to-peak corrupt data packets, causing 1 in 50 movements to execute incorrectly. Fiber optic systems should maintain light transmission above -20dBm—any signal loss beyond this threshold requires immediate connector cleaning or cable replacement. Wireless systems need RSSI values stronger than -70dBm; weaker signals introduce 100-300ms delays that ruin synchronized performances.

Monitor processor temperatures during operation—sustained readings above 65°C throttle performance by 20% and cut component life in half. Memory usage shouldn't exceed 70% of capacity; higher utilization causes timing jitter in motion sequences. Test backup battery hold-up time—the system should retain program memory for at least 72 hours during power loss. For PLC-based systems, scan cycle times must stay under 15ms to maintain smooth movement transitions; anything slower creates jerky motions that wear mechanical parts 30% faster.

 Potentiometers should show linear resistance changes within ±5% of spec—deviations cause joints to overshoot positions by 2-3 degrees. Infrared distance sensors need recalibration every 6 months as emitter strength degrades by 1-2% annually. Test limit switch activation points—mechanical wear can shift triggering positions by 1.5mm over 500 cycles, risking collisions. Force feedback systems must detect resistance changes of 0.5N or less; higher thresholds mask binding issues until damage occurs.

 Review path trajectories—unnecessary axis movements increase cycle times by 10-25% while wearing guides prematurely. Check acceleration profiles; rates exceeding 2m/s² generate inertial forces that loosen mechanical fasteners 50% faster. Analyze program logic for redundant commands that add 200-500ms of dead time per movement sequence. Update firmware annually—new versions typically improve efficiency by 8-12% through better motion algorithms.

Finally, document all parameter changes—unrecorded adjustments account for 40% of troubleshooting time during breakdowns. Keep spare control modules flashed with current configurations; having backups reduces downtime from 8 hours to under 60 minutes when failures occur. Systems with comprehensive maintenance records require 35% less diagnostic time when problems arise, getting animatronics back to peak performance faster.

Noise and Vibration Check

 65% of gearbox failures give 3-6 weeks of audible warning before complete breakdown, with vibration levels increasing by 0.2 Gs per week during this period. Background noise above 65dB at 1 meter distance indicates problems, while motors running with over 0.5mm of shaft play generate 30% more vibration than properly maintained units. These issues don’t just annoy visitors—they accelerate wear on surrounding components by 40-60%, making regular checks essential.

Record readings at 12 key points around the animatronic during standard movement sequences. Compare against manufacturer specs—any location exceeding factory levels by 15% warrants investigation. Pay special attention to high-frequency sounds in the 2-8kHz range; these often point to bearing failures or gear misalignment. Low-frequency rumbles below 200Hz typically come from structural resonance or loose mounting bolts, which can be fixed before causing permanent frame damage.

Use triaxial accelerometers to measure movement in all planes—healthy systems show under 0.3 Gs peak amplitude during normal operation. Focus on these critical areas:

1. Motor mounts should never exceed 0.4 Gs—higher readings suggest improper installation or worn dampeners
2. Gearbox housings must stay below 0.7 Gs—anything beyond this wears teeth 50% faster
3. Structural joints vibrating above 1.0 G risk cracking within 200 operating hours
4. Control cabinets showing over 0.2 Gs may develop loose wiring connections

A 250Hz spike often means unbalanced fans, while 1,200Hz harmonics indicate dry bearings. Compare current spectrums to baseline readings—any new peaks 15% taller than background levels deserve attention. For hydraulic systems, pulsation frequencies should match pump RPM within 5% variance; deviations suggest air in lines or worn seals.

 Components vibrating 50% above normal typically run 10-15°C hotter due to increased friction. Use infrared thermography alongside vibration checks—this combo catches 90% of developing issues before they cause downtime. Addressing noise and vibration problems early extends component life by 2-3 years while maintaining the smooth, realistic movements audiences expect. Record all measurements chronologically; trending data over time helps predict failures 4-6 weeks in advance, allowing planned maintenance instead of emergency repairs.
