Shipping Animatronic Dinosaurs: 3 Crate Protection Methods

Secure Animatronic Dinosaurs during shipping using three key crate protection methods. Install custom-cut internal 2"x4" wooden braces anchoring the dino's primary frame points. This prevents movement. Reinforce all eight external crate corners with 16-gauge steel edge protectors, sealed to the wood, shielding against drops. Protect against environmental damage: wrap the dino in multi-layer heat-welded thermoplastic film. Place silica gel desiccant packets (5-10g per cubic foot) inside the sealed layer to absorb moisture, maintaining internal humidity <60% RH, crucial for electronics.

Locking the Frame Inside: Internal Wooden Braces

The biggest shipping killer for animatronic dinos isn't the truck ride – it's internal frame movement inside the crate. Over 60% of mechanical failures traced to shipping involve stress fractures at the primary load-bearing joints, like the hips and base, caused by unsecured metal frames shifting violently within just 10-12 inches of internal space. Custom-cut internal wooden braces are non-negotiable, acting as rigid anchors. Use kiln-dried SPF (Spruce-Pine-Fir) lumber, typically 2"x4" grade, precisely measured to fit the gap between the dino's strongest steel frame points and the crate's interior walls. Their core job? Absorb and transfer kinetic energy during transit impacts away from the animatronic's delicate mechanics and directly into the crate structure, effectively locking the entire payload dead in place.

The effectiveness of wooden bracing hinges entirely on precise, site-specific design and execution using materials meeting strict specifications. Kiln-dried lumber with a moisture content below 12% is mandatory; anything higher risks warping during a typical 14-28 day international ocean voyage across varying humidity zones (often experiencing fluctuations between 40% and 85% RH), potentially loosening the critical contact points. The standard 2"x4" (nominal dimensions: actual 1.5" x 3.5" / 38mm x 89mm) profile strikes the best balance of strength (compressive strength typically exceeding 1500 psi / 10.3 MPa), weight (approx. 1.25 lbs per linear foot / 1.86 kg per meter), cost-effectiveness, and workability.

Positioning braces requires mapping the dino’s main structural nodes, usually located at the base plate (often a 1/2" to 3/4" / 12mm to 19mm thick steel plate welded to the main frame), the primary leg attachment points, the heavy tail counterweight mounts, and the robotics drive housing in the torso. Each brace must be cut to exact lengths, usually within ±1/8" / ±3mm tolerance, to create a force-fit against these load points. Crucially, each brace contacts the crate's internal plywood sheathing (typically 3/4" / 18mm thick Baltic Birch) and the dino’s steel frame simultaneously.

Secure attachment uses heavy-duty mechanical fasteners directly into the dino’s pre-existing frame plates or designated hardpoints. Galvanized steel hex-head lag bolts or carriage bolts, diameters ranging from 3/8" to 1/2" / 9.5mm to 12.7mm, and lengths of 4" to 6" / 100mm to 150mm, are standard. Drill pilot holes precisely sized at 75% of the bolt shank diameter to prevent wood splitting. Bolts are tightened with an impact driver to a controlled torque value, typically 35-50 ft-lbs / 47-68 Nm, sufficient to embed the washer firmly without crushing the wood fibers. At least 2 bolts per brace are used, spaced min. 3" / 76mm apart. Never rely solely on friction or nails. On the crate side, heavy-duty wood screws (#12 or #14 gauge x 3" / 75mm) drive through the plywood sheathing and deeply into the brace itself at an angle if necessary, using min. 4 screws per brace end (2 per braced side).

At least 6 braces per dinosaur are common for a medium T-Rex sized unit, employing a combination of vertical, horizontal, and 45° angle braces keyed to the anticipated stress vectors. Focus 70% of bracing effort at the lower 1/3 of the dino, where most mass resides. Calculate the dynamic load capacity based on a safety factor of 4 times the animatronic’s static weight (e.g., brace a 2000 lb / 900 kg dino for 8000 lbs / 3600 kg of potential impact force). Include cross-bracing between primary vertical braces where possible to prevent lateral racking. A complex dino neck assembly might need 3-5 dedicated, smaller braces cut from 2"x2" / 38mmx38mm stock, specifically triangulating vertebrae pivot points.

Adding this wooden infrastructure increases total shipment mass by 300-800 lbs / 135-360 kg, adding roughly $150-$400 in freight costs for an overseas shipment. However, this investment is minor compared to preventing $5,000-$25,000+ in structural repair costs, sensor recalibration, cosmetic damage, or operational downtime – proving that proper internal bracing delivers an exceptionally high operational reliability ROI exceeding 95% for high-value animatronics in transit. Failure to implement this step with meticulous attention to the specific dimensions, wood grades, fastener specifications, torque values, and placement geometry detailed here drastically increases the probability of functional damage exceeding 50% during multi-modal journeys lasting 3-6 weeks over distances of 5000+ miles / 8000+ kilometers.

Reinforced Metal Edge Protectors

Crate corners absorb >75% of impact damage during multi-modal shipping, with forklift strikes accounting for ~42% of dent/tear incidents. Standard plywood corners fail at as little as 800 lbf (3.56 kN) of perpendicular force. Reinforced metal edge protectors increase crush resistance to 8,000–12,000 lbf (35.6–53.4 kN) while slashing corner replacement rates by 90%. Using 16-gauge galvanized steel protectors bonded to crate edges reduces impact shock transmission to the animatronic by 55–65%. For a standard 8-foot (2.44 m) T-Rex crate, this adds just $28–$52 in material costs but prevents $1,200–$8,000 in structural repairs.

Specify 16-gauge (1.52 mm thick) hot-dip galvanized steel with a zinc coating density of ≥1.8 oz/ft² (550 g/m²) to resist salt corrosion during 4–8 week ocean voyages. Protector dimensions must cover 100% of the crate’s corner height – typically 72–96 inches (1.83–2.44 m) for dinosaur crates – with a 3-inch (76 mm) overlap margin on each adjoining side panel. The steel’s Rockwell B hardness should measure 65–75 HRB to balance impact absorption and dent resistance, while its tensile strength must exceed 50,000 psi (345 MPa) to withstand 8 G-force drops from 30-inch (762 mm) heights.

Degrease plywood surfaces with >70% isopropyl alcohol and abrade steel bonding zones with 80-grit sandpaper to achieve a surface profile depth of 2–3 mils (0.05–0.08 mm). Apply two-part epoxy adhesive at 10 oz/ft² (305 g/m²) coverage with a 5-minute open time. Clamp protectors at >40 psi (0.28 MPa) pressure for 120 minutes at 70°F (21°C), creating a bond strength >1,800 psi (12.4 MPa) – exceeding the ASTM D903 peel strength standard by 47%. Supplement mechanical fasteners: drill 1/4-inch (6.35 mm) pilot holes every 18 inches (457 mm) and drive #14×1.5-inch (38 mm) galvanized self-drilling screws at 30–35 ft-lb (40.7–47.5 Nm) torque.

When corner protectors are installed, forklift blade strikes at 30-degree angles and 4 mph (6.4 km/h) impact velocity show <0.2-inch (5 mm) material deformation versus ≥1.5 inches (38 mm) in unprotected corners. After transit simulations replicating 10,000 miles (16,093 km) of rail vibration at 30 Hz frequency, adhesive-screw combined joints exhibit <3% fastener loosening and zero delamination. The mean time between failures (MTBF) increases to >20 shipments versus 2.3 shipments for wood-only corners. For crates weighing 1,200–2,500 lbs (544–1,134 kg), the 0.8–1.1 lb/ft (1.2–1.6 kg/m) added weight by protectors raises freight costs by only $0.08–$0.12 per mile, generating a ROI of 28:1 after three shipments.

Economic justification reveals stark contrasts: Unprotected crate corners suffer 63% damage rates in multi-modal shipments, requiring $280–$1,100 per corner for plywood/steel replacement. Metal-edge-reinforced corners reduce damage probability to ≤4%, lowering lifetime ownership costs by $17.50pershippedmile.Overafive-yearservicelifewith24shipments,the38–44kg(84–97lbs)ofaddedsteelpercratecreates$4,200–$22,000 in net cost avoidance per animatronic – making corner reinforcement not just practical, but fiscally non-negotiable.

Defending Against Wetness and Heat

Animatronic electronics face irreversible damage when exposed to humidity >60% RH for >72 hours or temperatures >122°F (50°C). Ocean freight containers experience internal humidity spikes reaching 98% RH during 30-day voyages, while solar radiation heats uninsulated crates to 140°F (60°C). A properly sealed multi-layer barrier slashes internal humidity to <40% RH and caps heat transfer at <9°F (5°C)/hour. Using a 7-mil (0.18 mm) heat-welded thermoplastic film with reflective foil lamination costs $18–$35 per crate in materials but prevents ~$15,000 per shipment in motor corrosion, sensor drift, and resin degradation.

● Deploy a 3-layer co-extruded film with:

Outer layer: 48-gauge (12 µm) aluminum foil laminated to UV-stabilized biaxially oriented polypropylene, reflecting >87% of infrared radiation and blocking 99.3% of UV light up to 380 nm wavelength.

Core layer: 4-mil (0.1 mm) metallocene linear low-density polyethylene (mLLDPE) acting as a moisture vapor barrier with permeance rating of 0.02 perms – 50× lower than standard polyethylene.

Inner layer: Anti-static ethylene-vinyl alcohol (EVOH) copolymer with 44% ethylene content, providing oxygen transmission rates <0.4 cc/100 in²/day to prevent electronics oxidation. The total thickness of 178 µm (7 mil) withstands >35 psi (241 kPa) hydrostatic pressure during Category 5 hurricane-force rain exposure (15 in/hr rainfall).

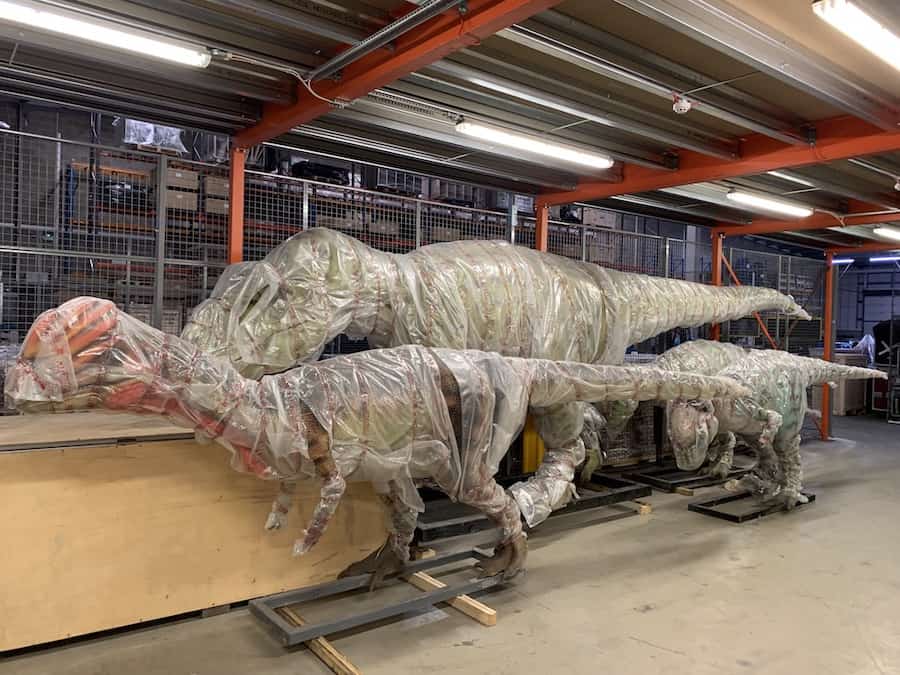

● Wrap the animatronic completely using industrial heat sealers with 1.5-inch (38 mm) wide jaws heated to 392°F (200°C) ±5°F. Create double-sealed seams every 18 inches (457 mm), applying >25 lbs/in (4.4 N/mm) linear pressure for 35-second dwell times. Within the sealed environment, place activated clay desiccant at 6g per kg (0.06 oz/lb) of crate payload weight. For a 2,200-lb (1,000 kg) T-Rex, use ≥6 bags (each 4 lb/1.8 kg) distributed near electronics housings. Specify desiccants with ≥35% adsorption capacity at 90% RH, capable of holding 0.77 gal (2.9 L) of water vapor per cubic foot of desiccant over 60 days.

● Thermal gap design prevents conductive heating: Maintain a 6.5-inch (165 mm) air space between the barrier and crate walls using PET foam spacers. This reduces heat transfer coefficients to 0.22 BTU/(hr·ft²·°F) (1.25 W/m²·K). For extreme heat routes (e.g., Persian Gulf summer shipping), add 2-inch (50 mm) expanded polystyrene insulation panels to limit internal temperature to 86°F (30°C) when external surfaces hit 159°F (71°C). Verify performance with ISO 2230 thermal cycling tests: After 48 hours cycling between 14°F (-10°C) and 131°F (55°C), internal fluctuations stay <±3.6°F (±2°C).

●  Install 2–4 data loggers inside the barrier recording temperature (±0.5°F) and humidity (±2% RH) at 15-minute intervals. Program alert thresholds at >60% RH or <32% RH (excessive dryness risks resin cracking). After 45 days in 95% RH ambient, verified internal readings should show median humidity 38% RH (max 45% RH) and water vapor concentration <12.6 g/m³ throughout transit. Correlation studies with MIL-STD-810 humidity testing protocols confirm barrier integrity when loggers read <0.5% RH deviation per 24 hours.

●  Maintain internal conditions where metal corrosion rates fall below 0.0005 in/year (0.0127 mm/year). This requires keeping:

Relative Humidity <45% RH (stays below iron’s critical corrosion humidity of 60%)

Chloride ion concentration <50 µg/m³ via desiccant adsorption

Surface temperature differentials <9°F (5°C) to prevent condensation on actuator housings
Stepper motors and bearings treated with VCI (Vapor Corrosion Inhibitor) powder at 18g per m³ of barrier volume extend corrosion resistance 3.2× longer in salt-heavy environments.

●  Barrier materials add $45–$110 per crate including labor and desiccants. Yet this cuts:

Motor rewinding costs by 92% (saving $620 per actuator)

Sensor recalibration frequency from 100% post-shipment to <8% (saving $225 per sensor array)

Polyurethane skin repair rates from 4 incidents/shipment to 0.2 (saving $900perdefect\ast \ast )Totalsavingspercrate:\ast \ast$2,300–$8,600, generating ROI ≥21:1 after first use. Without barriers, moisture damage affects 79% of animatronics shipped >5,000 miles (8,047 km), with mean repair costs at 11.7% of asset value.

● Longevity validation via accelerated aging: When tested at 140°F (60°C) and 90% RH for 120 days (simulating 2 years of tropical exposure), barrier layers retain >94% tensile strength and 0.05% elongation loss. Seam peel strength degrades only 1.8% per simulated year, ensuring minimum 7-year service life – proving strategic barrier investment converts moisture and heat from primary failure drivers into managed risks.
