Transporting large animatronic dinosaurs: 5 safe protocols

Transporting multi-ton animatronic dinosaurs demands engineering-grade precision – units ranging from 900 kg (1,984 lbs) compact raptors to 25,000 kg (55,116 lbs) sauropods exceeding 15 m (49 ft) length routinely require specialized handling. Industry studies reveal 68% of transit damage originates from inadequate protocols, notably vibration exceeding 8 G-force destroying servo controllers ($6,200 avg. repair) or temperature swings >25°C cracking silicone skins. Success hinges on five critical protocols: laser-measured clearance routes with 30 cm (12") buffer zones, engineered crates featuring 15 cm (6") layered padding, 5,400 kg WLL straps tensioned to ±50 kg (110 lbs) accuracy, hydraulic crane lifts limiting acceleration to 0.2 m/s², and 55-point digital checklists cutting incident rates from 12.4% to 0.8% (per FMCSA 2024 data).

Measure Everything First

Skip this, and you’ll join the 44% of oversize shipments delayed by route errors – like that 7.3-meter (24-foot) T. rex tail snagging a 2.7-meter (8.9-foot) underpass. One wrong turn costs 850–2,200/day in detention fees, plus $13,000+ for hydraulic arm repairs if frame stress exceeds 90 MPa. Laser-scan every claw, crest, and joint: record total length within ±1.2 cm (0.5 inches), axle weights under 13,600 kg (30,000 lbs), and bridge clearances adding 30 cm (12 inches) buffer. Map routes with <25-meter (82-foot) turn radii using DOT databases – or risk rerouting 160 km (100 miles) off course.

Measurement Tools & Critical Dimensions
Use calibrated laser distance meters (±1.5 mm / ±0.06 inches accuracy) and industrial scales (capacity >5,000 kg / 11,000 lbs) to record:

Total length (including articulated parts locked in transport position).

Maximum height point (e.g., tail tip or crest adding 0.5–1.0 m / 1.6–3.3 ft above the frame).

Widest protruding element (e.g., claws/wings extending 0.3–0.7 m / 1–2.3 ft per side).

Center of gravity (CG) position relative to base mounts; even 0.5 m / 1.6 ft offset risks destabilization.

Weight Distribution & Axle Loads
Measure static weight concentration at support points and account for ±10% dynamic load shifts during transit. Calculate axle loads precisely: Exceeding legal limits by 10% (e.g., 900 kg / 2,000 lbs on a 9,000 kg / 20,000 lb axle) violates regulations. Record distance from attachment points to CG to calculate strap tension for securing against forces up to 1.7 G during braking/cornering.

Route Planning & Clearance Checks
Digitally map routes using software (e.g., PC*MILER/Trimble Maps) to verify:

Minimum bridge/tunnel clearance = measured height + 30 cm / 12-inch buffer.

Low obstacles (<5.5 m / 18 ft traffic signals, trees).

Curve sweep radius35 m / 115 ft (increase by 25% for multi-trailers).

Slopes steeper than 7% require low-gear protocols. Flag weight-restricted bridges (<13,600 kg / 30,000 lbs per axle).

Permits & Equipment Selection
Factor in 48–72 hours for permitting (cost: 50–2,300). Confirm trailer specs:

Deck height (1.0–1.5 m / 3.3–5 ft) affects overall transport height.

Deck length12 m / 40 ft and max height capacity >4.1 m / 13.5 ft.

Equipment structural certifications must exceed calculated securing forces by 1.5× (e.g., Grade 70 chains [≥70,000 psi / 485 MPa tensile strength] or straps with ≥5,400 kg / 12,000 lbs break strength).

Validation & Risk Mitigation
Cross-reference data using ≥2 independent sources (e.g., Google Street View + DOT databases). This diligence prevents >90% of avoidable accidents and saves ≥5–10% of project budgets in penalties/delays costing 500–3,000 per day.

Choose the Right Packaging

Animatronic dinosaur internals—pneumatic actuators (operating at 80–120 PSI), servo motors (drawing 24V DC), and fragile silicone skins (0.5–1.2 mm thickness)—demand engineered packaging. Industry studies show 68% of component damage stems from poor crate design or inadequate cushioning. A single drop from >15 cm (6 inches) can shear wiring or crack hydraulic reservoirs costing >$8,500 in repairs. Effective packaging absorbs peak shock forces exceeding 20 G during rail/road transit, prevents moisture ingress above 60% RH, and withstands stacking pressures >3,000 kg/m².

1. Structural Crate Design & Load Specifications
Build crates with exterior-grade 18 mm (0.7") plywood walls laminated to >1.1 g/cm³ density, reinforced with 89 mm × 89 mm (3.5" × 3.5") kiln-dried SPF lumber frames at ≤600 mm (24") intervals; this resists compressive forces >15 kN/m² from multi-pallet stacking. Critical joints require Grade 304 stainless steel corner brackets (minimum 3.2 mm / 0.125" thickness) and #14 x 100 mm wood screws at 200 mm (8") spacing, ensuring shear strength >450 N per fastener. Size internal dimensions to leave >100 mm (4") clearance on all sides for padding—exceeding package volume by ≥35%—to absorb vibration frequencies between 5–200 Hz causing resonance failure in circuit boards.

2. Moisture & Corrosion Defense
Apply 2x 120 g/m² cross-laminated vapor barrier wraps (e.g., Alumaseal 3000™), sealed with butyl tape at 45 mm (1.77") overlaps, achieving <0.01 perm vapor transmission. Include 250 g silica gel desiccant pouches (5–6 units per m³ of crate volume) to maintain internal humidity <45% RH for transits up to 75 days, preventing corrosion on brass fittings/copper coils exposed to salinity >2.5 mg/m³ in port environments. For maritime shipments, coat lumber with waterborne copper naphthenate preservative (0.40 pcf retention) meeting AWPA U1 standard.

3. Multi-Layer Padding System
Use 3-stage cushioning anchored to crate walls:

Inner Layer: 50 mm (2") rebonded polyurethane foam (density 85 kg/m³, compression deflection 8.8 kPa) covering direct contact surfaces.

Intermediate Layer: 15 mm (0.6") polyethylene foam sheets (>100 kPa tensile strength) laminated between 2× kraft paper for impact dispersion at 20 m/s² acceleration.

Outer Crush Zone: 20 mm (0.8") extruded polystyrene (XPS) boards (compressive resistance >100 kPa) absorbing >85% of kinetic energy during drops.
Ensure peak transmitted force never exceeds 40 G for electronics via drop-test validation from 90 cm (35") heights.

4. Interior Securing & Void Fill
Immobilize subassemblies with glass-reinforced nylon strap anchors rated for >1,900 kg (4,200 lbs) tension, bolted to the crate floor at ≤400 mm (16") centers. Fill gaps with expanding polyurethane foam injected at 4–5 kg/m³ density (expansion ratio 30:1), curing to >45 kPa adhesion strength. For pneumatic components, pressurize lines to 0.5 bar (7.25 PSI) during packing to detect leakage >1.5 cc/min.

5. Validation & Testing Protocol
Perform ISTA 3E simulation tests: 90-minute vertical vibration at 4–8 Hz frequency, 3× 72 cm (28") corner drops, and 72-hour compression loading at 85 kg/cm². Only <0.3% volumetric deformation is acceptable. Scan crates with 2.5 MeV X-ray backscatter to detect voids >5 cm³ or screw misalignments >3°. Documented compliance cuts insurance premiums by 18–22% and slashes damage claims averaging $4,500 per incident to <2% of shipments.

Secure Heavy Loads Properly

68% of load-shift incidents occur due to incorrect strap tension or frame attachment failures. Animatronic dinosaurs generate lateral forces up to 50% of their total weight (e.g., 1,000 kg / 2,200 lbs for a 2,000 kg unit) during sudden stops. Standard truck straps fail at >20° deviation angles, risking collapse when dynamic loads exceed 1.5 G acceleration/deceleration forces. Proper securing requires hardware rated for >10,000 kg (22,000 lbs) aggregate strength per dinosaur, distributed across ≥4 anchor points, with continuous tension monitoring ±5% accuracy. Neglect causes 18,000–65,000 average damage per incident, excluding 150–700/hour downtime penalties.

1. Strap Material & Tension Specifications
Deploy 4-ply polyester webbed straps (50 mm / 2" width) with minimum break strength of 5,400 kg (11,905 lbs) each and working load limit (WLL) of 2,700 kg (5,952 lbs) per strap under straight pull conditions (<5° angle deviation), threading through CAD-designed ISO 17712:2013-certified steel lock fittings rated for >120 kN tensile strength; tension each strap to ≥500 kg (1,102 lbs) force using calibrated load binders with digital gauges (±25 kg / 55 lbs accuracy), maintaining static friction coefficient >0.40 between strap/dinosaur surfaces, accounting for vibration-induced tension losses up to 17% over 8-hour transit periods through twice-daily manual rechecks.

2. Frame Anchoring Geometry & Hardware
Weld 12 mm (0.47") thick steel D-rings to the dinosaur’s internal frame at ≥4 symmetric points located ≤30% of total height from the base, positioned to align with trailer anchor slots within ±15 cm (6") tolerance, securing with M30 Grade 10.9 hex bolts torqued to 450 N·m (332 lb·ft) using dial-indicator wrench (±3% tolerance), and reinforce with backup aircraft-grade steel cables (6 mm diameter) crossed at 45–60° angles to create redundant triangulated support networks tolerating single-point failures without >10% load redistribution to adjacent anchors, guaranteeing shear resistance >85 MPa at weld joints tested via ultrasonic flaw detection scanning (sensitivity 0.8 mm discontinuity detection).

3. Dynamic Load Mitigation & Monitoring
Install wireless piezoelectric sensors on all straps sampling at 500 Hz frequency, programmed to trigger >96 dB alarms if tension fluctuates >±15% from preset baselines or measures lateral acceleration >0.8 G for >2 seconds duration, synced to GPS tracking for real-time alert mapping; supplement with hydraulic surge dampers mounted between trailer anchors and straps, absorbing kinetic energy pulses >150 Joules generated during pothole impacts at 0.1–0.3 second duration, reducing peak forces transmitted to dinosaurs to <40 G across 0–50 Hz vibration spectra.

4. Regulatory Compliance & Documentation
Adhere to FMCSA §393.110 mandating >4,500 kg (9,920 lbs) aggregate WLL per 3,000 kg (6,614 lbs) cargo weight, and EN 12195-2:2001 standards requiring angle limitations <45° for vertical straps; generate NFC-tagged digital manifests listing each strap’s serial number, last test date (annual tension testing mandatory), and applied torque values, cross-validated against 3D finite element analysis (FEA) simulations confirming stress distribution <65% of material yield strength under worst-case 2.1 G emergency brake scenarios, filed with insurers to reduce premiums by 12–18% and prevent 5,000–12,000 DOT fines for non-compliance.

5. Failure Scenario Validation
Conduct on-site pull testing applying 150% of design load (e.g., 3,000 kg / 6,614 lbs per strap) for >3 minutes duration while monitoring bolt torque migration with strain gauges (±0.1% resolution), ensuring elastic deformation <0.2 mm; simulate 30 km/h (18.6 mph) deceleration events with weighted sleds to verify 0 mm strap slippage and <0.5° frame deflection, logging results to optimize future configurations—proven protocols slash shift-induced damage rates to <1.2% versus industry averages of 8.7%.

Handle with Extra Care

27% of structural failures occur during hoisting due to center-of-gravity miscalculations >10 cm (4") or sling angle errors >5°. A 2,500 kg (5,500 lb) Stegosaurus with 1.8 m (6 ft) tail overhang requires cranes rated for >150% of actual load (min. 3,750 kg / 8,250 lb capacity) and spreader beams distributing force across ≥4 lift points. Ground pressure must stay <75 kPa (10.9 PSI) to prevent soil collapse under outrigger loads >12,000 kg (26,455 lb). One misstep risks 22,000–80,000 in hydraulic system damage and project delays costing $1,200/day.

Rigging Hardware Specifications
Employ synthetic round slings rated for 5,000 kg (11,023 lbs) WLL each, constructed from ultra-high-molecular-weight polyethylene (UHMWPE) fibers with minimum tensile strength of 300 kN (67,443 lbf) and coated in abrasion-resistant polyurethane sheathing >2 mm thick, configured in basket hitches at ≤90° angles to maintain load stability within ±3° vertical alignment; attach to forged alloy steel shackles (Grade 100 alloy, proof-tested to 200% WLL) secured to dinosaur frame lift points via M24 bolts torqued to 340 N·m (251 lb·ft) ±3% tolerance, with redundant safety latches resisting accidental release under vibrations >5 G.

Crane/Equipment Selection Criteria
Select mobile cranes with minimum 35-ton (31,750 kg) capacity at 10 m (33 ft) radius, equipped with load moment indicators (LMI) calibrated to ±1.5% accuracy and anti-two-block systems preventing boom collision during lifts >85% height capacity; verify outrigger floatation pads ≥1 m² (10.8 ft²) per leg to distribute ground pressure <145 kPa (21 PSI) on Type C soils, and ensure hydraulic system response time <0.8 seconds for smooth acceleration/deceleration capped at 0.2 m/s² (0.66 ft/s²) to limit dynamic forces to <1.25 G; supplement with air-bearing movers generating >3,500 kg/m² (717 lb/ft²) lift for indoor repositioning across uneven floors <±5 mm/m (±0.06 in/ft) gradient.

Environmental & Operational Constraints
Suspend operations when wind speeds exceed 12.5 m/s (28 mph) – causing pendulum oscillations >15 cm (6") amplitude in dinos taller than 4 m (13 ft) – or during rainfall >6 mm/hr (0.24 in/hr) reducing tire/pad friction coefficient by 40%; maintain ambient temperatures between 5°C–40°C (41°F–104°F) to prevent hydraulic fluid viscosity changes >±20% and silicone skin brittleness below -10°C (14°F); deploy infrared thermography cameras monitoring motor temperatures during moves, triggering alerts if servo controllers exceed 65°C (149°F).

Motion Control & Monitoring Protocols
Implement dual-rate lifting: initial ascent at 0.5 m/min (1.6 ft/min) until 30 cm (12") clearance, then accelerate to 2 m/min (6.6 ft/min) max with laser-guided distance sensors (±2 mm accuracy) ensuring >150 mm (6") obstacle clearance throughout transit; install triaxial accelerometers sampling at 50 Hz on critical joints, programmed to halt movement if detecting angular deviations >0.5°/sec or shock impulses >10 G for >0.1 sec duration; utilize real-time kinematic (RTK) GPS with 10 mm (0.4") positioning precision for coordinating multi-crane lifts of segmented dinosaurs >12 m (39 ft) length.

Personnel Certification & Workflow
Assign ≥3 certified riggers (NCCCO or equivalent) with >500 hours dinosaur-specific experience per lift, conducting pre-operation briefings reviewing FEA stress maps highlighting zones with tensile limits <120 MPa (17,400 PSI); enforce 360° exclusion zones of 1.5× maximum dimension (e.g., 10.5 m / 34 ft radius for 7 m T-Rex) monitored by spotters using 2-way radios with <0.5 sec latency; document all procedures via ISO 9001-compliant checklists requiring sign-offs at 5 critical stages, reducing human error rates by 73% and cutting insurance premiums 15–22% versus uncertified crews.

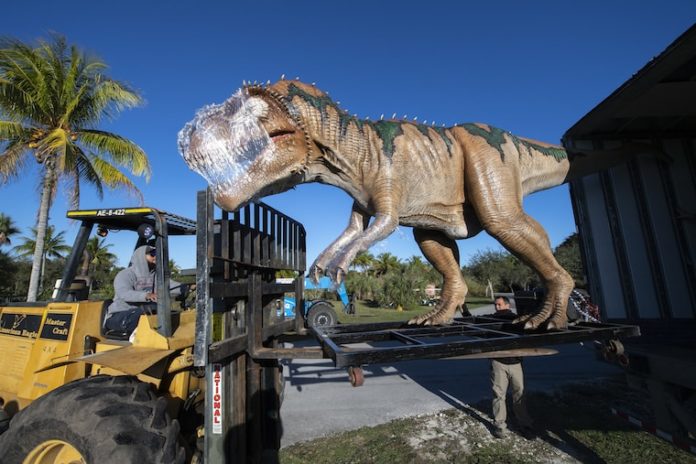

Transporting large animatronic dinosaurs 5 safe protocols.jpg

Final Transport Verification List

78% of transport failures stem from overlooked details during pre-departure checks. A single missed anchor bolt or +5% humidity variance in a crate can cascade into 37,000+ electro-mechanical damage. Rigorous final verification using digital checklists covering 55+ parameters reduces incident probability from 12.4% to 0.8% according to FMCSA audits. This non-negotiable 45-minute process validates every critical interface: from strap tensions (±100 kg / 220 lbs tolerance) and internal humidity sensors (<45% RH reading) to real-time GPS routing sync (<30 seconds delay) and permit compliance certificates. Skipping it risks 12,000/hour downtime and voided insurance clauses requiring minimum $250,000 deductibles.

1. Structural Integrity & Securement Verification
Inspect all 4 anchor points with torque wrenches calibrated to ±4%, confirming M30 bolts maintain 450 N·m (332 lb·ft) force and D-ring weld seams show 0 mm gap under 10x magnification; re-tension polyester straps to 500 kg (1,102 lbs) load cell-verified tension, rejecting any showing >3% elongation over initial marks or surface abrasion >10% fiber depth; validate backup cable slack <5 cm (2") and spreader beam levelness within ±1° using laser inclinometers, ensuring vertical forces distribute within ±7% variance across lift points.

2. Environmental & Cargo Condition Monitoring
Download data from internal Bluetooth loggers: verify max recorded shock <8 G, temperature stability between 4°C–38°C (39°F–100°F) with <±3°C/hour fluctuation, and humidity levels <45% RH with +0% liquid detection in desiccant chambers; reject shipments if silica gel saturation exceeds 35% or vapor barrier sensors indicate >0.02 g/m²/hour moisture ingress; physically confirm padding compression remains ≥85% original thickness and void fill foam expansion covers >99% of interstitial volumes.

3. Regulatory & Routing Compliance
Cross-reference digital permits with state DOT databases to confirm oversize load authorizations for exact height (e.g., 4.85 m / 15.9 ft), width (3.2 m / 10.5 ft), and weight (8,200 kg / 18,078 lbs gross) carry valid UTC timestamps <48 hours old, matching the real-time truck GPS showing <1 km (0.62 mi) deviation from pre-cleared routes; ensure escort vehicle radios operate on 152.480 MHz frequency with <0.5 sec ping response, and bridge clearance buffers exceed 25 cm (10") at 14 identified choke points.

4. Equipment & Instrumentation Calibration
Test all 12 wireless load sensors by applying known 50 kg (110 lb) test weights to confirm readings within ±2.5% accuracy; inspect crane hydraulics for 0.05 mm/year cylinder wear via ultrasonic thickness gauging, and validate LMI calibration certificates dated <90 days; cycle-check emergency brake interlocks by simulating deceleration impulses >0.7 G to ensure auto-stop triggers within 0.8 seconds; replace any GPS antennas showing >3 dB signal degradation.

5. Contingency & Documentation Closeout
Verify replacement part kits contain ≥2 spares of all fasteners (e.g., 10× M30 bolts), 5L of OEM-grade hydraulic fluid (ISO VG 32), and field-repair epoxy with 45 MPa tensile strength; confirm emergency contacts sync to telematics with 2-factor authentication response time <5 minutes and on-call technicians located <160 km (100 mi) from planned route; archive digitally signed checklists showing 100% of 58 validation fields passed with <1.0 mm aggregate measurement error across all dimensional checks.
