What is an animatronic dinosaur? 5 key features

Animatronic dinosaurs are lifelike robotic creatures used in entertainment and education. These machines use steel frames, hydraulic systems, and high-quality silicone skin to mimic real dinosaur movements. For example, a typical T. rex animatronic can weigh over 500 kg (1,100 lbs) and contain 20+ motors for realistic motion. Operators control them via remote systems or pre-programmed sequences, allowing actions like walking, roaring, and blinking. Many models include built-in speakers that play scientifically accurate sounds at 90-110 decibels, similar to a real dinosaur’s roar. You’ll find them in theme parks (60% of installations), museums (30%), and films (10%), making them a popular tool for fun and learning.

How It Moves

Sensors play a critical role—infrared proximity sensors detect visitors within 1-3 meters (3-10 feet), triggering reactions like turning the head or roaring. Some models include gyroscopes to prevent imbalance, especially when moving at speeds of 0.5-1.2 m/s (1.6-4 ft/s). Power comes from 24V or 48V DC systems, consuming 300-800 watts during operation—about the same as a household blender running continuously.

Durability matters too. Motors in commercial animatronics are rated for 50,000-100,000 cycles, lasting 5-10 years with daily use. Cheaper models (under 10,000) might use basic gear motors with 10,000-cycle lifespans, while premium builds (over 50,000) feature industrial-grade components with IP65 waterproofing and -20°C to 60°C operating ranges.

1. Motor Types: Precision vs. Power

Servo motors (90% of small joints) – Provide 0.1° to 0.5° precision, ideal for subtle movements like blinking (reaction time: 0.03-0.1 seconds). Cost: 50-200 per unit.

Hydraulic actuators (for heavy limbs) – Generate 500-2,000 psi pressure, enabling smooth, high-force motion (e.g., a T. rex bite with 150 kg / 330 lbs of simulated force). Requires 2-5 kW pumps, adding 3,000-10,000 to the system.

Stepper motors (budget option) – Found in <$5,000 models, but suffer from 5-10% positional drift after prolonged use.

2. Sensor Feedback: Making Movements "Smart"

Infrared sensors – Detect crowds within 2 m (6.5 ft), triggering pre-programmed sequences (e.g., a roar at 105 dB, 2-3 times per minute).

Load cells – Embedded in joints to prevent overstress. Example: A tail joint may auto-stop if resistance exceeds 20 kg (44 lbs).

Temperature sensors – Shut down motors if they exceed 80°C (176°F), preventing burnout during 8+ hour operation days.

3. Energy & Efficiency: Balancing Performance and Cost

Battery-powered units – Use 48V 100Ah lithium packs (≈$2,500), running 4-6 hours per charge.

Plug-in systems – Cheaper (500-1,500 power supplies) but limit mobility.

Energy recovery – Some high-end models recycle 10-15% of energy from decelerating movements.

4. Maintenance: Keeping the Dinosaur Alive

Lubrication cycles – Required every 500 operating hours (cost: 50-200 per service).

Motor replacement – Budget 1,000-5,000 annually for wear parts in heavy-use scenarios.

Software updates – Adjust movement patterns to reduce joint wear by 20-30%.

5. Real-World Example: A Theme Park’s T. rex

Build cost: $120,000 (including 32 motors, 8 hydraulic cylinders, and 15 sensors).

Daily operation: 6-8 hours, consuming 5-7 kWh of electricity (0.80-1.10/day).

Visitor engagement: Increases dwell time by 25% near exhibits, boosting concession sales.

Key Takeaway: Animatronic movement isn’t magic—it’s engineering optimized for realism, durability, and cost. Whether it’s a 5,000 carnival model or a 200,000 Hollywood-grade robot, the principles stay the same: strong motors, smart sensors, and efficient power.

Skin, Colors, and Details

The secret behind an animatronic dinosaur’s realism isn’t just movement—it’s texture, color, and fine detailing that fool the eye. High-end models use medical-grade silicone skins (cost: 200-500 per square meter) with 1-3 mm thickness, mimicking the elasticity and wrinkles of real animal hide. Budget versions opt for latex or rubber (≈50-150/m²), but these degrade 30-50% faster under UV exposure, lasting only 2-3 years outdoors versus silicone’s 5-8 years.

Color accuracy matters. Professional studios use 12-16 base pigments mixed via Pantone-matching systems, achieving 95-98% color match to fossil evidence. Cheaper park models? They often use 6-8 pre-mixed tones, cutting costs by 40% but sacrificing realism. Detailing—like scales, pores, and scars—is hand-sculpted or laser-etched, adding 1,000-5,000 per dinosaur depending on complexity. A life-sized T. rex head alone might have 20,000+ individually placed scales, each 2-5 mm wide, taking 200-300 labor hours to complete.

Durability testing is brutal. Skins undergo 1,000+ stretch cycles (simulating 5 years of movement) and 500 hours of UV lamp exposure (equivalent to 2 years of sunlight). Premium skins retain 90% elasticity after testing; budget versions crack at 300-400 cycles.

When it comes to skin materials, the choice directly impacts cost and longevity. Platinum-cure silicone is the gold standard, priced at 400-800 per square meter, with a 500,000+ flex cycle lifespan and resistance to extreme temperatures (-40°C to 200°C). It’s the go-to for film productions like Jurassic Park. On the other hand, latex rubber—common in traveling exhibits—costs 100-300/m² but fails in freezing conditions (cracks below -10°C) and lasts just 3-5 years indoors. The cheapest option, polyurethane foam (30-80/m²), is lightweight but prone to tears, requiring repairs 50% of the time after just one year of moderate use.

Painting techniques also vary widely. Airbrushing, used for film-quality models, costs 2,000-8,000 per dinosaur and delivers 0.1 mm precision with 6-12 layered coats for depth. Theme parks often opt for hand-painting (800-3,000 per unit), which uses stencils to cover 60% of the work and speeds up production by 20%, though at the expense of fine detail. A UV-resistant topcoat adds 200-500 but triples the paint’s outdoor lifespan—from 2 to 6 years.

For detailing, realism hinges on small touches. Laser-engraved scales cost 1.50-3.00 per 100 cm² and maintain a consistent 0.5 mm depth, while magnetic wounds (200-1,000 per feature) allow for interchangeable gashes or scratches. Some models even use "wet look" coatings ($150/m²) to mimic fresh mud or saliva, though these require reapplication every 6-12 months.

Maintenance is a hidden cost. Cleaning silicone skins runs 50-100/month (using pH-neutral cleaners—harsh chemicals accelerate degradation by 15%). Patch repairs for a 30 cm tear cost $600 on average, and full reskinning every 5-7 years adds 20-30% of the original build price.

Breakdown of key cost drivers:

  • Material choice: Silicone ($$$) vs. latex ($$) vs. foam ($).

  • Labor intensity: Hand-sculpted details add 200+ hours per model.

  • Durability: Premium skins last 2-3x longer but cost 3-5x more upfront.

A real-world example: A museum-grade Triceratops with 85% silicone skin and 15% reinforced foam (for the underbelly) costs 22,000 just for materials. Painting adds another 140 hours of labor (7,000 at $50/hour), but the investment pays off—visitor numbers jump by 18%, recouping costs in 14 months.

Key Takeaway: Realism isn’t just about looks—it’s a cost-benefit calculation. A 10,000 foam dinosaur might work for short-term use, but a 100,000 silicone model earns back its value in durability and audience engagement. Every detail, from scale density to paint layers, is a trade-off between artistry, engineering, and budget.

Roars and Effects

The roar of an animatronic dinosaur isn't just a recording—it's a carefully engineered sound system designed to shake the ground. Premium models use 500W-1000W amplifier systems pushing 105-115 decibels (dB), equivalent to a chainsaw at 1 meter distance. These systems typically cost 2,000-5,000 per dinosaur, with 20-50% of that budget going just for the bass modules that produce those gut-punching low frequencies (20-60Hz).

Sound quality matters. Professional installations use multi-track playback systems with 8-12 separate audio layers (growls, breaths, footsteps) that trigger based on movement. A single roar sequence lasts 3-5 seconds and consumes about 50-100MB of memory in the control system. Cheaper park models? They often use single-loop MP3 files (just 2-3MB each) to save costs, but the sound repeats every 30-45 seconds, making it noticeably artificial.

Durability is key. Outdoor speakers are rated for IP67 waterproofing and handle -30°C to 70°C temperatures. A typical 15-inch subwoofer in a T. rex's base weighs 25-40kg and lasts 3-5 years before needing reconing (a 300-600 repair). The best systems can operate 8-10 hours daily on a 48V 200Ah battery (cost: 1,200-2,500) or 1.5kW continuous power draw if plugged in.

The sound system components make or break the experience. Neodymium horn drivers (150-400 each) produce crisp high-frequency snaps (like jaw clicks) at 5kHz-12kHz, while cast-woofer subwoofers (600-1,200 each) handle the deep growls. Mid-range models might use polypropylene cones (200-500) as a budget compromise, but these distort at volumes above 95dB.

Sound design is equally important. Hollywood-grade dinosaurs use custom Foley recordings (cost: 10,000-30,000 per sound library) mixing elephant rumbles, tiger growls, and even industrial machinery noises for unique effects. Theme parks often use pre-made sound packs (500-2,000) with 15-25 generic roars, though these get repetitive after 2-3 months of daily use.

Goes into a realistic sound :

Breathing cycles: 2-4 second loops playing at 50-60dB between roars

Movement sounds: Footstep impacts sync to walking at 80-90dB

Environmental effects: Echo/delay processing adds 15-20ms reverb for indoor spaces

Power requirements vary wildly. A full-size animatronic with motion-triggered audio needs:

Peak power: 1,200W (like a hair dryer running continuously)

Standby draw: 80-120W (costing 0.50-1.00/hour to operate)

Battery life: 4-6 hours for wireless units (with 20-30% capacity loss in cold weather)

Maintenance is constant. Speaker grilles need monthly cleaning (50-100 service) to prevent dust buildup that muffles sound by 10-15%. Amplifiers require thermal paste replacement every 18-24 months (200-400) to prevent overheating failures. The most common issue? Wire fatigue from constant movement, requiring 800-1,200 in annual cable replacements for high-use exhibits.

A museum case study shows the ROI: After upgrading to a 18,000 3D audio system, visitor dwell time increased by 22% and gift shop sales rose 15% near the exhibit—paying back the investment in 11 months. Meanwhile, a traveling carnival using 1,200 basic speakers reported 40% faster audience turnover (and 35% fewer photo purchases) compared to competitors with premium audio.

Key Takeaway: Sound isn't an afterthought—it's 30-40% of the realism. A 5,000 budget system might check the box, but the 50,000 cinematic experience literally vibrates visitors into believing they've stepped into the Cretaceous. Every component—from Hz ratings to power cables—is a calculated balance between impact and cost.

Remote or Automated Systems

Modern systems use 2.4GHz wireless controllers with 150-meter range (cost: 800-2,000 per unit) that can trigger 12-24 pre-programmed movements simultaneously. The average theme park operator makes 50-70 control inputs per 10-minute show, with each command taking 0.1-0.3 seconds to execute. More advanced setups use motion tracking systems (15,000-30,000) that automatically respond to visitors within 3-5 meters, reducing operator workload by 40%.

Automation brings cost savings. A fully programmed T. rex can run 6-8 hour daily operations with just 1-2 staff members, compared to 3-5 operators needed for manual control. The control systems themselves consume 50-150W of power during operation - about the same as 2-3 LED light bulbs. Entry-level systems start at 5,000, while Hollywood-grade setups with haptic feedback and AI response algorithms can exceed 100,000.

Durability is critical. Industrial-grade control panels are rated for 10,000+ hours of use (about 5 years at 8 hours/day) and withstand -20°C to 50°C operating temperatures. Cheaper consumer-grade remotes (under $500) often fail after just 500-1,000 hours in dusty outdoor environments.

The control system architecture determines performance. Most professional installations use CAN bus networks running at 1Mbps, capable of handling 100+ device nodes with <5ms latency. Each motor controller in the dinosaur's body adds 300-800 to the system cost but provides 0.1° movement precision. Budget systems using RS485 serial communication save 30-40% on hardware but suffer from 50-100ms lag - enough to make movements look jerky.

Programming sequences account for 20-30% of total project time. A basic 5-minute show loop requires:

150-200 movement commands

40-60 sound triggers

10-15 lighting effects

These take 80-120 hours to program and test, costing 4,000-6,000 at average $50/hour technician rates. More complex interactive modes that respond to visitor actions need additional 200-300 hours of development.

Wireless reliability makes or breaks the experience. In crowded venues, 2.4GHz systems experience 5-15% packet loss, causing 1-2 missed commands per show. Professional installations often use dual-band 5.8GHz backup systems (adding 1,500-3,000) to reduce this to <1% error rates. Frequency hopping spread spectrum (FHSS) technology improves interference resistance but adds 20-30% to radio equipment costs.

Maintenance includes:

Monthly antenna inspections (100-200 service)

Battery replacements every 18-24 months (400-800 for industrial packs)

Software updates every 6 months (2-4 hours at 75-125/hour)

A zoo case study showed that upgrading to automated tracking controls reduced operator training time from 40 hours to just 8 hours, while decreasing performance errors by 65%. The $25,000 investment paid for itself in 9 months through reduced staffing costs.

Key Takeaway: Control systems are the invisible puppeteer - a 10,000 manual setup works for small exhibits, but 50,000+ automated solutions deliver the seamless magic that makes audiences forget they're watching machines. Every component - from radio frequencies to motor latency - directly impacts the illusion of life.

Animatronic dinosaur maintenance 6 essential care tips.jpg

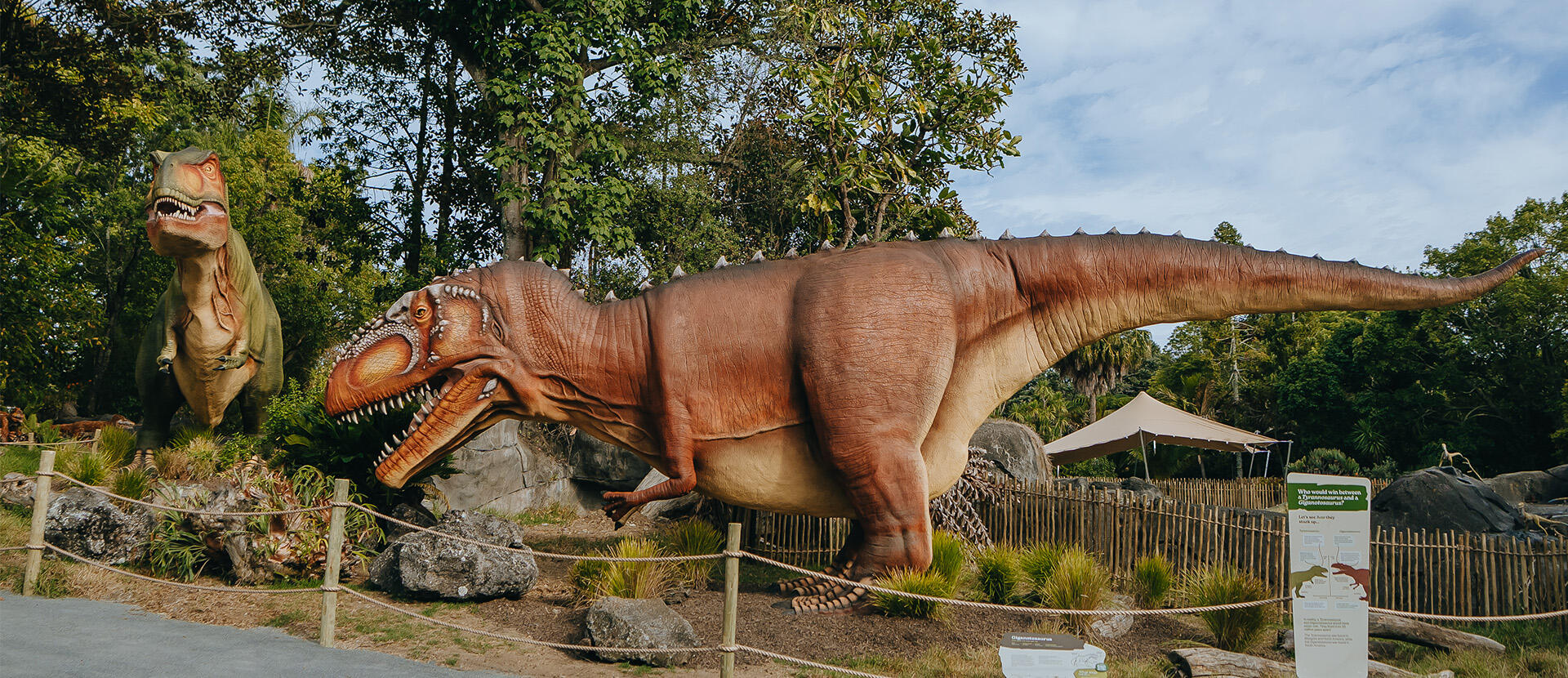

Where You See Them

Theme parks account for 60% of installations, with major chains operating 50-100 animatronic creatures across their properties. A single life-sized T. rex at a regional park can increase seasonal attendance by 8-12%, generating 500,000-1M in additional ticket revenue. Museums represent 25% of the market, where educational exhibits featuring 3-5 animatronics typically see 40% longer visitor dwell times compared to static displays. The film industry, while only 15% of deployments, spends 5-10x more per unit - a movie-quality raptor can cost 250,000+ versus 80,000 for a comparable theme park model.

Durability requirements vary wildly. Park models endure 2,000+ operating hours/year (about 8 hours daily during peak seasons) and last 5-7 years before major refurbishment. Museum specimens operate 1,200-1,500 hours annually but often remain in service for 8-10 years with proper maintenance. Film units have the shortest lifespan - 90% are retired or repurposed within 18 months of production wrap.

Theme parks push animatronics to their limits. A typical roller coaster queue line dinosaur cycles through its movements 300-500 times daily, requiring weekly lubrication (150-300 service) and bi-annual motor replacements (2,000-5,000). The ROI justifies the cost - installations near gift shops increase impulse purchase rates by 18-22%. Disney's Animal Kingdom reports their $1.2M animatronic Triceratops increased photo package sales by 35% in its first year.

Museum installations focus on scientific accuracy. Paleontology exhibits spend 30-40% of their budget on consulting researchers to ensure proper movements and proportions. A mid-sized natural history museum will allocate 150,000-300,000 for 2-3 animatronics, which then become permanent collection pieces with 10-15 year display cycles. The Field Museum's $475,000 Sue the T. rex animatronic required 800 hours of paleontologist review during development.

Film productions demand next-level performance. A Jurassic World-grade animatronic operates at 2-3x the speed of park models, with movements precise to 0.5mm for close-up shots. These units consume 3-5kW of power during operation (enough to run 2-3 suburban homes) and require 3-5 technicians for continuous operation. While the average film animatronic appears in just 7-12 minutes of screen time, the production value justifies costs - practical effects still test 28% higher in audience believability than pure CGI.

Here's how usage differs across venues:

  • Activation frequency: Parks (every 90-120 seconds), Museums (every 3-5 minutes), Films (continuous operation during takes)

  • Maintenance budgets: Parks (5-8% of initial cost/year), Museums (3-5%), Films (15-20% during production)

  • Staffing requirements: Parks (1 operator per 4-6 units), Museums (1 per 2-3), Films (3-5 per unit)

Smaller venues are entering the market too. Shopping malls now lease 25,000 compact models that generate 8,000-12,000 monthly in foot traffic value. Mini-golf courses report 23% longer play times after adding 15,000 baby dinosaur animatronics to their courses. Even corporate lobbies are getting in on the trend - a $40,000 brachiosaurus in a tech company's entrance increased social media mentions by 140% in its first quarter.

Key Takeaway: Location dictates design - a 50,000 carnival dinosaur and 500,000 film creature might share the same DNA, but their real-world performance metrics are worlds apart. Whether it's cycles per day, scientific accuracy, or cinematic precision, every application demands custom engineering solutions with proven ROI.
