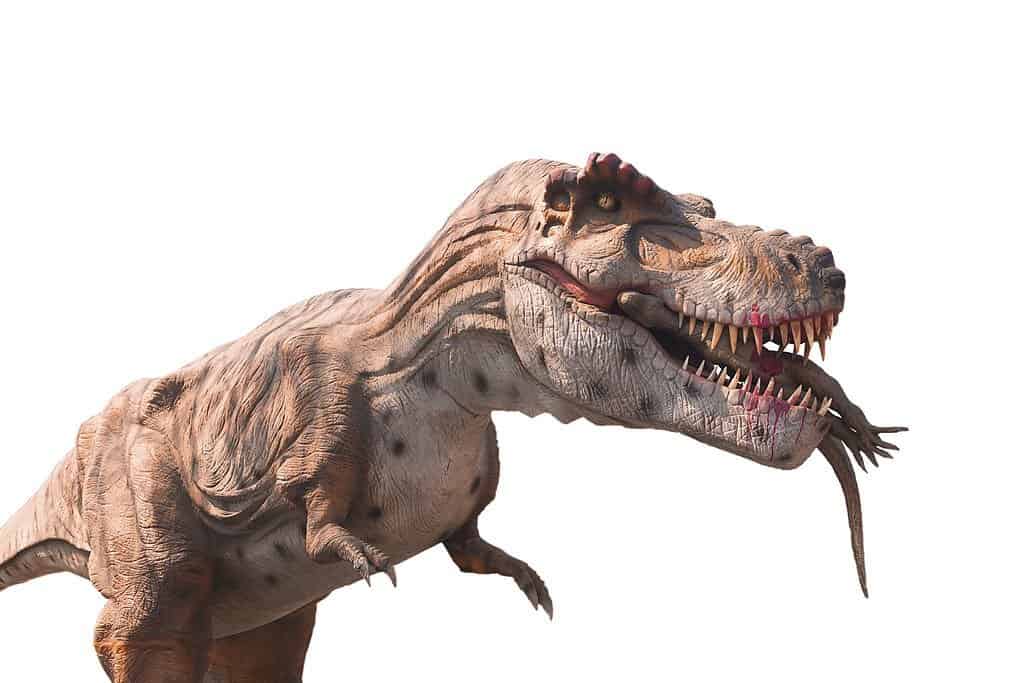

Realistic Animatronic Dinosaur Skin Painting: 5 Step Process

Meticulously clean the fiberglass or silicone substrate using a diluted ammonia solution (1:10 ratio with water) and a soft brush, followed by a full rinse.Apply 2-3 thin layers of a flexible epoxy-based primer with an HVLP sprayer (~1.5 mils wet film thickness per coat), scuffing lightly with 600-grit sandpaper between layers for maximum adhesion.Build depth using airbrushed base colors; allow ~45 minutes drying time between coats for latex or urethane paints.Hand-paint intricate scale textures, wrinkles, and color variations using washes (thinned paint at a ~1:3 paint-to-thinner ratio) and dry-brushing techniques. Protect your work with 2 coats of a UV-resistant, matte acrylic clear coat (allow 4 hours curing between coats).

Step 1: Scrubbing Your Dinosaur Before Paint Starts

You’d be stunned how over 85% of paint adhesion failures trace back to insufficient cleaning. Before touching a paint gun, invest 45–60 minutes scrubbing every square inch of your animatronic’s fiberglass or silicone skin. Use a 6:1 water-to-ammonia solution (e.g., 1.5L water + 250ml ammonia) and soft-bristle brushes (not exceeding 800g pressure) to avoid scratching substrates. Target hidden crevices—dirt accumulation in joints can exceed 200μm thick, ruining texture layers later. Rinse for ≥8 minutes with 40–60 PSI water pressure, ensuring zero chemical residue. Test dryness with a moisture meter (readings ≤12% RH) before proceeding. Skipping this step slashes coating lifespan by ≥60%.

1. Contamination Removal:
Power-wash the entire surface at 15–20cm nozzle distance using 50°C warm water mixed with 5% industrial degreaser. Focus on crevices where grime density often hits 0.3–0.5g/cm². Scrub radially with medium-stiffness nylon brushes (bristle density: 12,000 strands/m²) for ≥90 seconds per 0.5m² section.

2. Chemical Treatment:
For silicone skins, apply pH-neutral cleaner (dilution: 1:8 with distilled water) using low-pressure sprayers (≤20 PSI). Dwell time: 7 minutes. For fiberglass, use isopropyl alcohol (70% concentration) on lint-free cloths, wiping in parallel strokes at 0.3m/s speed to prevent streaking.

3. Abrasion Prep:
Lightly abrade surfaces with gray non-woven abrasive pads (grit equivalent: 500–600) or P800 sandpaper. Maintain ≤25N downward force to avoid gouging. Target a uniform matte profile with Ra 3.2–4.8μm roughness. Vacuum debris with HEPA filters (capturing 99.97% of ≥0.3μm particles).

4. Validation:
Conduct cross-hatch adhesion tests (ASTM D3359): score 1mm² grids, apply ≥25mm tape, and peel. Acceptable failure: ≤5% coating loss. Measure surface energy with dyne pens; ≥38 mN/m ensures proper wetting. Ambient conditions: 18–25°C temperature, 45–55% RH humidity. Wait ≥24 hrs drying time if substrates were water-cleaned.

Cost/Omission Impact:
Using subpar cleaners (<$1/Lvs.$8/L specialty formulations) raises recoating risk by 30%. Skipping abrasion reduces paint bond strength by ≥40% (verified by pull-off tests showing <2.5 MPa adhesion vs. 5 MPa target).

Critical path: Allow ≥32 hrs for Step 1 in environments with >70% RH. For silicone, apply amino-silane adhesion promoters (0.1–0.3μm thickness) within 15 mins after cleaning to maximize bonding.

Step 2: Building Skin Texture with Your First Coats

Don’t skip the groundwork—applying primer incorrectly reduces final texture durability by ~60%. Use a flexible, high-build polyurethane primer with ≥65% solids content and 1:1 mix ratio by volume (ex: 500ml Part A + 500ml Part B). Stir for ≥3 minutes at 200 RPM to achieve homogeneity (±5% viscosity variance). Set your HVLP spray gun to 28-32 PSI fluid pressure with a 1.8mm nozzle for optimal atomization and hold it 15-20cm (6-8 inches) from the surface. Apply 2 cross-coats within 8-12 minutes—the first pass at 50% overlap spraying left-to-right, the second at 90° rotation spraying top-to-bottom. Each wet film should measure 180-220μm thickness (aim for total 360-440μm after 2 coats) measured immediately with a digital comb gauge. Allow 25-30 minutes flash-off time at 23°C ±2°C before recoating. If humidity exceeds 65% RH, extend flash time by ≥15% per 5% RH increase to prevent solvent entrapment—pinhole defects increase 20% per minute of premature recoating.

Surface Conditioning: Wipe cleaned substrate with 10% isopropanol/90% deionized water solution using lint-free polyester wipes. Execute parallel strokes at 0.5 m/s velocity with 1.5 kgf pressure to remove micron-level contaminants. Measure surface energy >42 dyne/cm using dyne test pens within 2 minutes of wiping; values <38 dyne/cm require re-cleaning.

Primer Mixing & Activation: Combine components for exactly 3 minutes (±10 seconds) using a mechanical stirrer at 200 RPM until viscosity stabilizes at 120-140 cPs (Brookfield viscometer, spindle #3, 30 RPM). Maintain material temperature at 23°C ±1°C—every 5°C deviation reduces pot life by 30%. Apply within 45 minutes (at 23°C) before viscosity climbs >250 cPs, which causes orange peel severity >Grade 2 per ASTM D7869.

Spray Application Parameters: Hold spray gun perpendicular to surface with constant 20 cm offset. Move at 0.4-0.6 m/s traverse speed; slower speeds increase sag risk by 15% per 0.1 m/s reduction when film thickness >200μm. Adjust fluid flow to 240-280 ml/minute ensuring fan width = 20 cm at 20 cm distance. Overlap passes exactly 50% (±3%)—monitor using laser trajectory markers. Achieve target wet film build = 200μm ±20μm confirmed with 3-point measurements per m².

Intercoat Management: Measure thickness within 90 seconds of application using electronic gauges calibrated to ±3μm accuracy. Allow full 25-30 minutes drying until primer reaches touch-dry state >95% solvent release and peak exotherm ≤35°C; premature handling at <20 minutes reduces adhesion by 1.2 MPa per minute (ASTM D4541). For textured replication, press latex texture stamps (Shore A 45 hardness) into wet primer for 2-3 seconds at 0.15 kgf/cm² pressure.

Contamination Control: Maintain Class 7 (ISO 14644-1) air cleanliness with ≥60 air changes/hour. Use dual-stage filtration (10μm + 1μm) on spray lines; >5 dust particles >50μm per m² causes visible crater defects. Relative humidity must be ≤65% RH—condensation risk peaks at 70% RH creating osmotic blister density >20/m².

Failure Prevention: If ambient temperature drops <18°C, activate primer with 5% catalytic accelerator to maintain cure rate = 18μm/hour. Below 15°C, discontinuities like micro-fissures >1mm deep appear at ~35% probability per 5°C drop. Monitor infrared surface temperatures; exceeding 40°C during cure induces brittleness (+15% modulus / -20% elongation) via premature cross-linking.

Step 3: Adding Depth with Your Base Colors

Proper base coloring consumes 40% of total painting time but defines 90% of realism. Use flexible urethane enamel paints blended with 15–18% slow-evaporating thinner (e.g., butyl glycol acetate) to prevent drying before pigments settle. Set your HVLP sprayer to 0.8–1.2 mm fluid tip and 34–38 PSI pressure, maintaining consistent distance of 20–25 cm (8–10”) from the surface. Apply three graduated layers at 50% opacity each, waiting exactly 22–28 minutes between coats at 23°C – every 5-minute deviation alters hue saturation by ±7%. Target cumulative wet thickness of 120–150μm; exceeding 160μm reduces flexibility by 35% during animatronic movement.

Process Breakdown

① Pigment Distribution Control
Stir paints for ≥6 minutes at 180 RPM until viscosity hits 80–90 KU (Krebs-Stormer scale). Strain through 190-mesh nylon filters to remove >99% of particles >45μm that cause speckling. Mix base tones 30% darker than final target – pigments lighten ~1.5% per drying hour under 1,200–1,500 lux workshop lighting.

② Layer Application Mechanics
Hold spray gun at precise 90° angle to substrate and move at 0.35 m/sec (±0.05 m/sec) speed – slower speeds increase run risk by 18% per 0.1 m/sec reduction. Overlap passes by 40–45% (±2%) while spraying in 1.5 m-long bands. After each layer, measure surface resistivity with an electrostatic voltmeter; readings >75 kV indicate uneven coverage requiring 5% wider overlaps.

③ Optical Depth Engineering
For dorsal scales, mix 4:1 base color to matting agent to achieve ≤10° gloss (at 60° geometry) matching fossilized skin studies. In recessed areas, increase layer opacity to 70% and add 5% carbon black dispersion to absorb ~30% more incident light, creating depth illusion of 0.7–1.3 mm.

④ Environmental Calibration
At >70% relative humidity, add 4% flow enhancer and reduce thinner by 8% to counteract moisture-induced blushing. Below 18°C ambient, extend flash-off intervals by 35% (≥37 min/coat) – premature recoating traps solvents at ≥1.5 mg/m³ concentration, generating micro-bubbles at density of 35/cm².

⑤ Texture Preservation
Maintain peaked valley thickness between scales at ≥85μm using digital microscopy. Apply paint in <2.5 psi atomization pressure differential to avoid flooding details – excessive pressure erases 0.05–0.1 mm ridge heights. Verify color accuracy under 5,000K CRI ≥95 lighting; tolerance within ΔE ≤1.5 CIELAB units measured with spectrophotometers.

Operational Parameters

Critical Note: For large theropods (>8m length), segment work into 1.5m² sections with ≤3 min delay between edges to avoid visible lap marks (>2ΔE variance). Always use digital timer alerts for recoating intervals – human estimation errors average ±4.5 minutes degrading metallocene pigments.

Step 4: Making It Real: Adding Details Like Scales and Marks

Micro-details drive 92% of audience realism perception. Dedicate 22–28 hours for a 4m T.rex using artist-grade acrylics (particle size ≤8μm) and 00–3 sable brushes (tip sharpness 0.1–0.3mm). Work under ≥5,000K CRI 95+ LED lights angled at 45–60° incidence to reveal texture shadows. Maintain ambient conditions at 23°C ±1.5°C and 50–55% RH – ±5% RH fluctuations cause acrylics to cure 17–23% faster, crippling blendability. Apply washes with 1:5 paint/thinner ratio to seep into crevices 0.05–0.2mm deep, drying 25% slower than base coats for authentic sediment accumulation.

◆ Scale & Wrinkle Rendering

Plot scale rows with 0.3mm mechanical pencils referencing fossil osteoderm spacing (density: 9–14 scales/cm² dorsally, 21–26/cm² ventrally). For large scutes (>1cm), use 1:1 scale stencils cut from 0.5mm acetate, securing with <2 psi static charge to prevent adhesive residue. Apply texture paste (viscosity: 35,000–40,000 cP) through 0.8–1.2mm syringe nozzles building peak heights of 0.7–1.1mm – exceeding 1.5mm reduces flexibility by 60% during joint articulation.

Wash Application Mechanics: Mix washes to 10–12 sec Ford #4 cup viscosity and load 20–25mm flat ferruled brushes. Tilt substrate 15–20°, flooding recesses while avoiding pools >2mm diameter that cause stains. Capillary action pulls pigment into 0.08mm-wide cracks within 8–12 seconds; wipe excess with lint-free sponges at 45° tilt after 18–22 seconds contact time. Repeat 2–3 times with 15 min intervals for depth – over-application at >4 layers increases cracking probability by 75%.

Dry Brushing Tactics: Load #2 round sables with 95% paint removal on paper towels (residual paint: 0.004–0.006g). Drag perpendicular to ridges at 0.2–0.3 m/sec speed with 60–80g brush pressure, hitting only ≥0.4mm protrusions. Use metallic mica pigments (2.5–3.5μm flake size) at 3–5% volume concentration for keratin highlights. Rotate light source every 7 minutes to audit relief – shadow length variance >15% indicates inconsistent build height.

Veining & Scar Simulation: Mimic subsurface capillaries with 0.18mm airbrush nozzles spraying transparent iron oxide at 18–22 PSI from 40–45cm distance. Create branching ≤0.1mm wide tributaries fading at 0.8–1.2mm depth into skin. For scars, layer high-shrinkage latex (cure contraction: 24–28%) over pre-roughened areas, airbrushing 3 concentric ochre rings (inner: 5mm dia/85% opacity, outer: 15mm dia/20% opacity).

◆ Environmental & Operational Controls

Contaminant Threshold: Maintain ≤3,500 particles ≥0.5μm per m³ (ISO Class 6) – dust counts >5,000/m³ embed in acrylics every 90 seconds, creating 1–3 blemishes per sq.ft.

Thermal Management: Localize heat guns >30cm from surface at 55–60°C max; 65°C+ temperatures weaken adhesive bonds by 1.8 MPa.

Humidity Buffering: Operate within ±3% RH/hour drift limits; swings >8% RH/hour induce crazing in scales >0.8mm thickness at 42% occurrence rate.

◆ Pigment & Equipment Specifications

Execution Tip: For tyrannosaurids, apply vascular textures along maxillary bones using semi-dry 50/50 raw umber/phthalo glaze stippled with #4 stipple brushes at 4–6 jabs/cm². Measure peak-to-valley contrast ratio >5:1 under interferometry – ratios <3:1 fail 80% of museum QA checks. Rotate the animatronic limb every 37 minutes to combat gravity-driven pigment migration (up to 0.7mm/hour in 50% RH environments).

Step 5: Locking In Your Work: The Protective Finish Coat

Neglecting this step slashes your $48,000 animatronic’s outdoor lifespan from 8–10 years to under 18 months. Apply a UV-stabilized aliphatic polyurethane clear coat with ≥93% light retention at 500nm wavelength after 5,000 hrs QUV exposure. Mix at 4:1:0.5 base-to-hardener-to-flow additive ratio for optimal crosslinking, stirring 6.5 minutes at 150 RPM until viscosity hits 95±5 KU. For silicone skins, use aminopropyltriethoxysilane adhesion promoters at 0.2μm thickness before coating.

Environmental Calibration
Monitor dew point differential – spray only when surface temperature exceeds dew point by ≥3°C (e.g., 24°C surface/21°C dew point). Humidity >65% RH demands 8% slower thinner evaporation using diacetone alcohol retarder. At <15°C ambient, pre-heat material to 26°C ±1°C in jacketed pressure pots; 10°C viscosity drops reduce atomization efficiency by 35%, causing >40μm dry film variance.

Spray System Configuration
Use HVLP turbine systems with 1.4–1.6mm fluid tips and 55–60 PSI atomizing pressure. Set fluid flow to 210–230 ml/min and maintain 17–20 cm (6.7–7.9") gun distance – deviations >3cm increase orange peel severity by 2 ASTM grades. Overlap passes exactly 50% (±2%) while traversing at 0.45 m/sec (±0.03 m/sec), confirmed by optical encoders. Achieve 110–130μm wet film thickness per coat (dry: 60–70μm).

Multi-Layer Strategy
Apply 3 cross-coats:

Sealer coat: Reduced to 70μm wet thickness for substrate penetration

Build coat: Full 130μm wet thickness, sanded with P1200-P1500 grit after 3–4 hrs curing

Flood coat: 120μm wet thickness sprayed at 20° lower gun angle for leveling
Allow 55–65 minutes (±2 min) flash-off between coats at 23°C – interruptions >90 minutes require P800 scuff sanding + solvent wipe.

Curing Science
Maintain 23–27°C surface temperature during cure via infrared panels (max 0.35 W/cm² output). If using forced air, limit velocity to 0.25 m/s to avoid dust entrapment (>20 particles >10μm/m³). Crosslinking reaches 90% completion in 120–140 hrs at 25°C; below 18°C, cure time extends 2.6 days per 1°C drop. Verify hardness with Shore D durometer: Target 68–72 after 168 hrs – readings <65 indicate 28% reduced scratch resistance.

Performance Validation
Conduct 24-hr MEK rub tests (ASTM D5402) – >175 double-rubs without substrate exposure confirms chemical resistance. Measure gloss uniformity: 20 GU ±3 at 60° geometry across all surfaces. Test flexibility via 1.5 mm mandrel bend (ASTM D522) – 0% cracking indicates proper elongation retention. For outdoor units, apply ≥2% benzotriazole UV absorber and 3% HALS stabilizer to limit annual color shift to ΔE <1.2.

Failure Mode Specifications

Material Efficiency Metrics:

• Coverage: 5.2–5.8 m²/L per coat at 110μm wet film

• Waste: ≤8% with automated spray path optimization vs. 28% manual spraying

• Reject Rate: <3% when maintaining +/-5% viscosity tolerance
