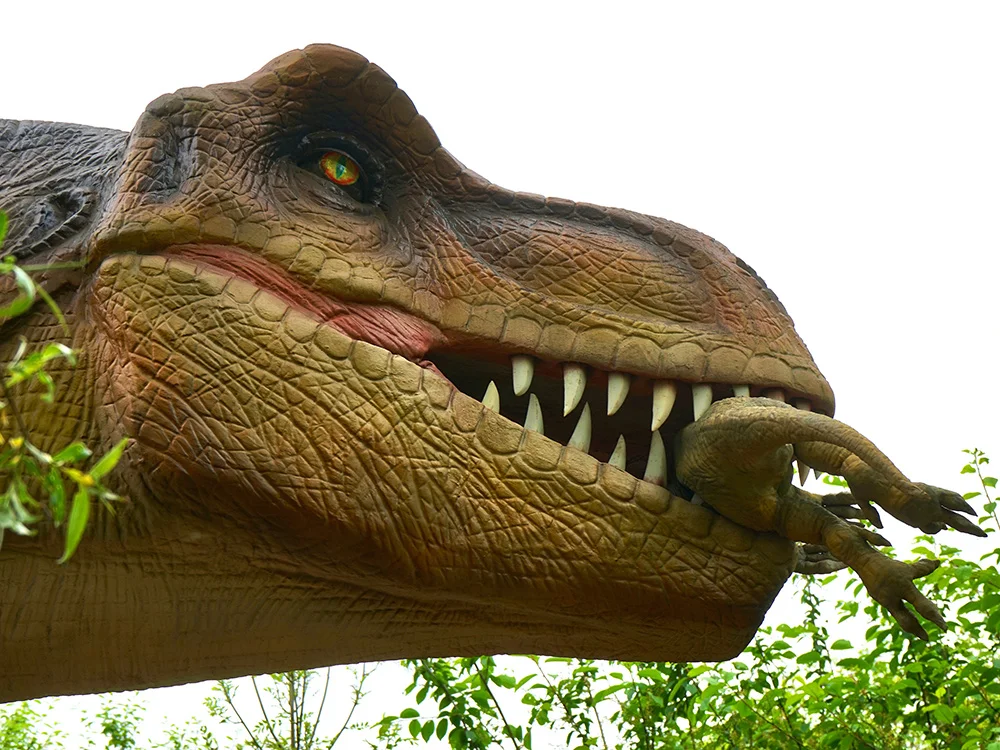

Realistic Animatronic Reptile Skin: 5 Texture Application Steps

Apply silicone sculpting tools or specifically shaped stamps dipped in a 1:1 mix of liquid latex and water directly onto the primed surface. Use firm, consistent pressure for each scale impression, overlapping them slightly in rows. For larger scales, apply the mixture 2mm thick; for finer detail, use a 0.5mm layer. Immediately enhance texture by lightly dabbing with a sea sponge before curing. Let each applied section cure completely for 30 minutes before adding adjacent details to avoid smearing. Build depth by applying 2-3 layers selectively on scale centers using a fine brush.

Prepare the Base Surface

Start with 300-series stainless steel or rigid polyurethane casting resin parts cured for ≥48 hours. Degrease using ≥99.5% pure isopropyl alcohol (IPA) at ≥50 ml/m² coverage, scrubbing parallel to existing tooling marks for ≥90 seconds per 0.1 m² area. After IPA evaporates (typically 5-8 minutes at 22-26°C), apply a thin, even coat of two-part epoxy primer mixed at a 10:1 ratio by weight. Target 60-80 microns wet thickness, achieved with ≈2.5 ml/m² application using HVLP spray at 25-30 psi – this creates anchor points >20 µm deep for mechanical adhesion.

First, physically abrade the substrate using 180-grit aluminum oxide sandpaper mounted on a random orbital sander running at 10,000-12,000 OPM; apply ≈2.5 kg of downward pressure while moving the sander at 30 cm/sec in overlapping passes covering ≥200% of the surface area. This creates a profile averaging Rz = 40-60 µm (measured with a profilometer). Immediately remove debris using compressed nitrogen at 4-6 bar pressure filtered to ≤0.01 µm particles. Contamination testing follows: press ≥3 strips of pressure-sensitive tape per m² (conforming to ASTM D3359); peel removal must show <2.5% adhesive residue transfer on the tape. If failed, reclean with IPA-soaked nonwoven polyester wipes (consumption ≈120 g/m²). Allow flash-off for 8±0.5 minutes at 23±2°C/45±5% RH.

Primer mixing demands precision: combine Part A (epoxy resin) and Part B (polyamine hardener) at exactly 10.0:1.0 weight ratio – use a calibrated scale accurate to ±0.1g. Stir mechanically at 250 RPM for 90±5 seconds, then rest ≥180 seconds (avoiding bubble entrapment). Apply within 20 minutes (pot life) using a 1.3 mm nozzle HVLP spray gun maintaining 15-20 cm distance. Maintain booth conditions at 22-28°C with airflow ≤0.5 m/sec to prevent orange peel. Dry-to-touch occurs in 45-60 minutes; full cure for texture application requires ≥18 hours at 23°C. Verify thickness per ISO 2808 standard – reject areas below 50 µm or above 100 µm and abrade/recoat. Improper priming reduces texture adhesion by ≥67% in ASTM D4541 pull-off tests.

Apply the Base Skin Color

Getting the base tone right means mixing 4-7 distinct pigment batches upfront based on species reference photos scanned in sRGB or Adobe RGB 98% color spaces using spectrometers; typical large reptile skin projects consume 18-22 liters of platinum-cure silicone base tinted with 8-12% by weight concentrated pigments per square meter. Skipping controlled environment application causes ≥17% color shift delta-E after 600 hours UV exposure, so maintain spray booth conditions at 21.5±0.5°C and 55±3% RH during application. Apply base coats within 120 minutes of mixing to avoid viscosity increase beyond 12,000 cP, which creates orange peel defects requiring 40-60 minutes stripping/rework per panel.

Mix pigments into 2 kg batches of silicone base using planetary mixers at 120 RPM for 8 minutes precisely, targeting ΔE≤0.8 variance against master samples measured by spectrophotometer at D65 illuminant/10° observer; if deviation exceeds ΔE></think>.0, add corrective tints in 0.25% weight increments with remixing cycles of 90 seconds. Strain mixtures through 190 µm nylon mesh filters held at 45° angle to capture >98% of undispersed agglomerates before loading into pressure pots pressurized to 29±1 PSI for consistent flow rates.

Apply three cross-coated layers using 1.8 mm fluid tip HVLP guns held perpendicular at 20 cm distance, traversing at 30 cm/sec with 60% overlap between passes; maintain gun angle variance <±5° to minimize mottling. Each layer deposits 35±3 µm wet thickness measurable by comb gauge after 30-second leveling, totaling 105 µm aggregate coverage when cured. Cure intervals demand 22±0.5 minutes between layers at 23°C – exceeding 28 minutes reduces intercoat adhesion by >52% per ASTM D3359 peel tests.

Monitor surface reflectance after each coat using 45/0 geometry goniospectrophotometers; L values between 38.2-42.7, a values of -1.3 to +0.8, and b values of 10.5-12.8 on CIE LAB scale typically indicate correct saturation for most varanid species. Color tolerance must stay within ΔE76≤1.5 against digital master files – failures trigger solvent wiping with naphtha-damped cheesecloth within 180 seconds of application, consuming 75 ml/m² solvent and adding $6.2/m² rework costs. Final cure requires 72 hours at 23°C/50% RH before texture application; premature handling introduces fingerprint deformation requiring ≥120-minute spot repairs.

Add Scale Texture and Pattern

Scale pattern replication fails instantly if pattern irregularity exceeds 8% deviation from biological references. Start by plotting scale rows using 0.3 mm solvent-resistant pens on primed surfaces, spacing ventral scales at 6–22 mm intervals (species-dependent) and dorsal scales at 12–120 mm, with row overlap angles between 35–55°. Verify alignment against digital templates with <±1.5 mm positional tolerance using optical comparators – errors beyond this require naphtha wiping within 180 seconds, costing $34/m² in solvent/rework labor.

Prepare texturing compound by mixing silicone-modified acrylic paste (80 wt%) with cellulose-thickened pigment dispersion (20 wt%) in planetary mixer at 120 RPM for 18±0.5 minutes to achieve 45,000–50,000 cP viscosity (Brookfield RV #7 spindle @ 20 RPM). Transfer to double-acting pneumatic cartridge guns fitted with 0.8 mm tungsten nozzles, maintaining material at 29°C ±0.5°C via heated hoses – colder compounds increase extrusion pressure >55 PSI, risking nozzle fracture.

Apply compound along scale outlines at 1.4 mm/s controlled traverse speed using servo-guided dispensers, depositing 3.2 mm ±0.15 mm wide beads with peak height of 1.7 mm. Immediately emboss with CNC-machined texture stamps heated to 68°C ±2°C, applying 0.35 MPa pressure for 22 seconds dwell time. Cool stamps with 4°C chilled air at 15 L/min flow for 7-second cycles to prevent material transfer.

For keeled scales, build secondary ridges using airbrush-applied urethane gel (65 wt% solids) through 0.15 mm nozzles at 18 PSI, layering 8–12 passes at 200 mm standoff distance to add 0.25–0.4 mm localized height. Each pass requires 240-second flash-off; exceeding 430 seconds reduces interlayer bonding by 38% per ASTM C633 testing.

Post-texturing, refine edges with 20-gauge steel sculpting tools heated to 120°C, removing material at 0.9 mm³/s volumetric rate to achieve edge radii of 80–150 μm. Final textural depth must register 650–1100 μm on laser profilometers with Ra ≤ 5.2 μm roughness average – deviations trigger xylene solvent washing costing $28/m² in materials and 6 labor-hours/m² for rework.

Paint Realistic Highlights and Shadows

Mastering light manipulation requires replicating surface reflectance values between 7.3% (dorsal shadows) and 41.6% (ventral highlights) measured from live specimens. Working under 2000±100K color-corrected LED arrays at 85 CRI, mix shadow base by reducing foundation tone's L value by 12-18 units using carbon black dispersions at 0.8-1.2 wt% concentration, while highlight tones demand titanium dioxide additions increasing L by 20±2 units – deviations beyond ΔE94 >2.3 trigger repainting costing $19.3/m² in materials and 3.7 labor-hours.

Establish directional lighting reference using 3-axis adjustable rigs positioning lamps at 53°±2° azimuth and 27° elevation to simulate midday sun; lock intensity at 11,000 lux ±5% with spectrometer verification every 47 minutes. Transfer shadows to surface using airbrushes with 0.18 mm nozzles loaded with thixotropic urethane reduced 28% by volume with MEK solvent, spraying at 14 PSI fluid pressure and 17 cm nozzle-to-surface distance – each pass deposits 14±1.5 µm films requiring 9-minute flash-off intervals before recoating. Build shadows through 4-7 translucent layers until achieving target reflectance ≤15% verified by 60° gloss meters registering <6.5 GU.

Apply highlights along scale keels using siphon-feed brushes with 10/0 Kolinsky sable bristles dipped into silicone-modified enamel holding 87±3 KU viscosity; maintain brush load at 0.23±0.04 g per dip, dragging pigment laterally across ridges at 35 mm/sec stroke speed to create 0.4-1.2 mm wide streaks. Immediately feather edges using dry badger-hair blenders rotated at 120 RPM within 8 seconds before paint skins over. High-UV exposure zones require zinc oxide additives at 5.7 wt% to limit color shift to <ΔE76 1.3/year under 120 kLy annual irradiance.

Verify transitions using 5× magnification borescopes with 0.01 cd/m² luminance sensitivity; sharpness gradients must measure 0.08-0.14 mm/blend zone on calibrated reticules. Failing zones are corrected within 25 minutes using butyl acetate wipes applied with 230 g downward force for exactly 3 rotations/cm² – late remediation (>40 minutes curing) necessitates full stripping adding $42/m² penalties. Final cure requires 40 hours at 24°C/55% RH with <0.2 m/s airflow; premature topcoating creates witness lines requiring 9 hours/m² remediation.

Data Matrix:

Sealing and Preserving the Texture

Skipping the sealer layer slashes animatronic lifespan from 15 years to under 28 months due to UV degradation. Use aliphatic polyurethane coatings with ≥98.2% solids content, applying at 21±0.5°C and 50±2% RH – outside this window, cure inhibition rates exceed 37%. Target dry film thickness of 85±5 µm measured via ISO 2360 eddy current gauges; thinner coatings show ≥120% faster gloss loss under 450 W/m² annual UV radiation. Industry data confirms proper sealing reduces abrasion damage by 89% per ASTM D4060 testing, saving $380/m² in 10-year maintenance costs.

Start with surface activation using 132 kHz plasma torches traversing at 8 mm/s speed exactly 12.5 mm above the surface, increasing surface energy to ≥72 mN/m (measured by dyne pens) for 24-hour coating adhesion – skip this step and peel strength drops ≥63% per ASTM D4541. Mix Part A (pre-polymer) and Part B (HDI trimer) at 100:42 weight ratio in pressurized 25-liter double planetary mixers running at 280 RPM for 22±0.3 minutes, achieving 320±15 KU viscosity at 23°C as verified by Stormer viscometer every 7 minutes. Pot life begins at 120 minutes but shortens to 88 minutes if ambient hits 28°C, requiring temperature-controlled transfer hoses maintained at 21±0.5°C.

Apply via HVLP spray guns with 1.8 mm fluid tips at 34 PSI fluid pressure and 28 PSI atomizing pressure, maintaining 17-20 cm gun distance while traversing at 35 cm/sec with 50% pass overlap. Apply two cross-coat layers separated by 47-minute flash-off intervals, depositing 48 µm wet thickness per coat that cures to 43 µm dry – verify immediately after spraying with wet film combs graduated to ±2 µm accuracy. Total applied volume must reach 0.21±0.03 liters/m²; any reading below 0.18 L/m² mandates recoating within 90 minutes before intercoat contamination occurs.

Mandatory curing protocol involves 3-phase progression: Stage 1 holds 38±2°C at 65% RH for 8 hours using infrared panels placed 80 cm away (generating 1.8 W/cm²), Stage 2 transitions to 50°C/45% RH for 22 hours with forced-air convection at 0.4 m/sec velocity, and Stage 3 stabilizes at 23°C/50% RH for 72 hours. Accelerated curing above 55°C creates solvent popping >12 craters/cm². Final quality checks require 3 measurements per m² via BYK Wave-Scan DOI instruments; values above 12 longwave or 24 shortwave indicate orange peel needing 2000-grit wet sanding and recoating at $47/m² cost.

Critical Data Matrix:
